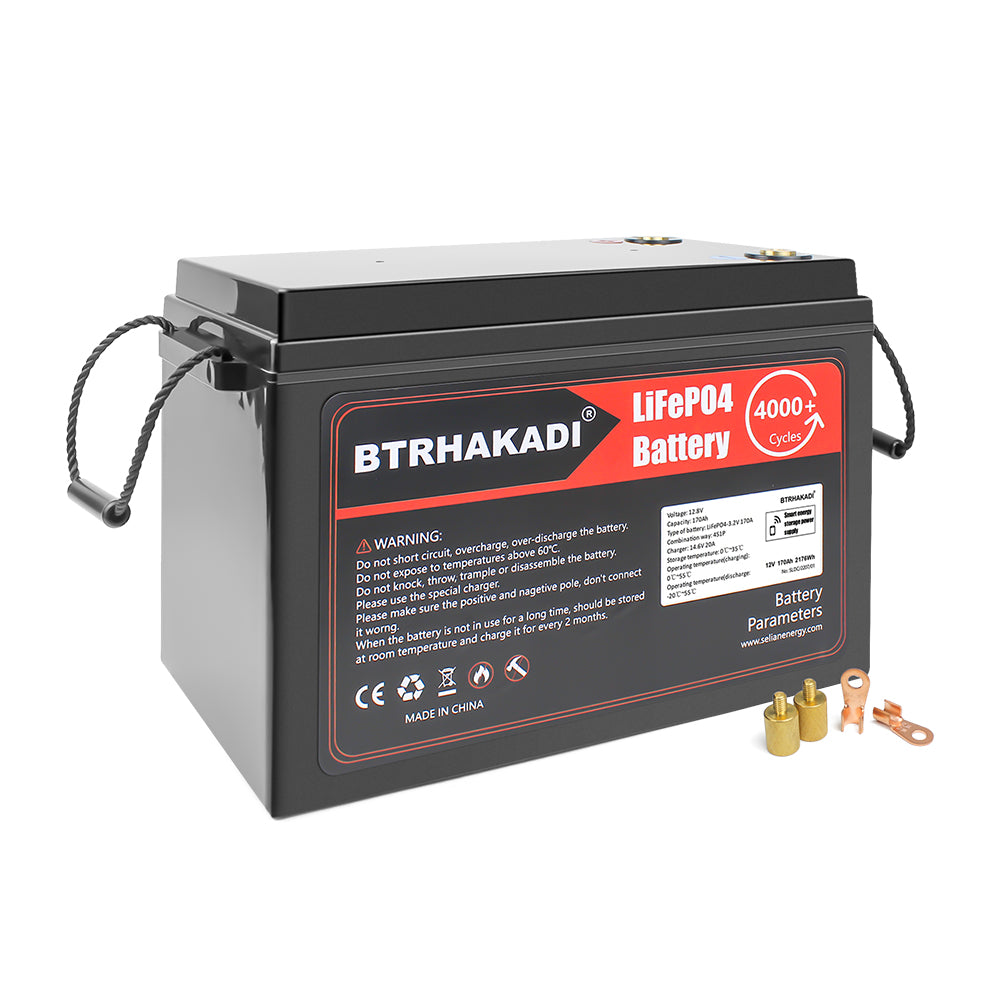

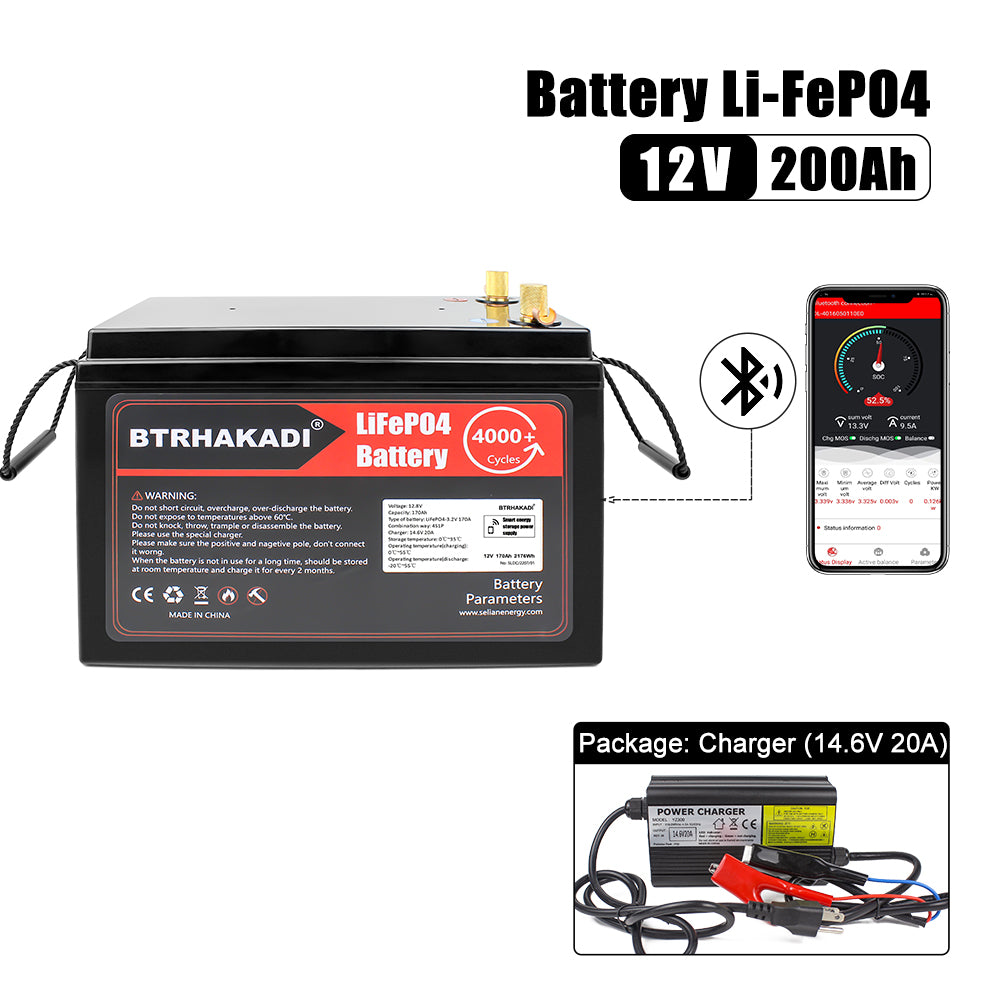

HAKADI 12V 200Ah LiFePO4 Lithium Battery, Built-in 100A Bluetooth BMS, 2560Wh Energy Use Grade A LiFePO4 Cell
HAKADI 12V 200Ah LiFePO4 Lithium Battery, Built-in 100A Bluetooth BMS, 2560Wh Energy Use Grade A LiFePO4 Cell
Couldn't load pickup availability
🛒EU, USA, Ukraine, Price including shipping and VAT！
🛒EU, USA, Ukraine, Price including shipping and VAT！
We will offer you a better price!
please feel free to contact us via email or the Whatsapp number and Email at the bottom of the page, we will help you and look forward to doing business with you!
Email:linda@szhakadi.com
Whatsapp:+86 13202568382
🔋Battery Warranty
🔋Battery Warranty
LiFePO4 Battery 5 years
Sodium ion Battery 5 years
LTO Battery 10 years
NMC Battery 5 years
LiFePO4 Battery Pack 5 years
The warranty period is from the date you receive.
We only replace new cell for free due to the failure of manufacturing.
Before the shipment, we will detect the cell voltage/resistance/appearance and other issues. we can only ensure that single cell is good before the shipment.
When arrival you can test the cells within 1 week. If you find any problems, please contact us for refund or replace. Any return behavior buyers need to be responsible for shipping fee.
Product Specification
Battery type: 3.2V 200Ah Brand New Grade A Cell
Combination method: 4S1P
Nominal capacity: 200Ah
Nominal voltage: 12.8V
Battery size: 245*190*345mm
Battery weight: about 18.5kg
Cycle life: 4000 cycles at 100% DOD, 6000 cycles at 80% DOD
Charge voltage: 14.6V
Standard charging method: Constant Current 0.2C，Constant Voltage 14.6V，0.01C cut-off
Max. charge current: 50A
Cut-off voltage: 11V
Max Continuous discharge current: 100A
Over current protection: 150A
Overcharge protection voltage: 14.6V±0.05V
Over discharge protection voltage : 11.0V±0.05V
Operating Temperature
Charging: 0～45℃
Discharge: -10～60℃
Battery warranty: 3 years

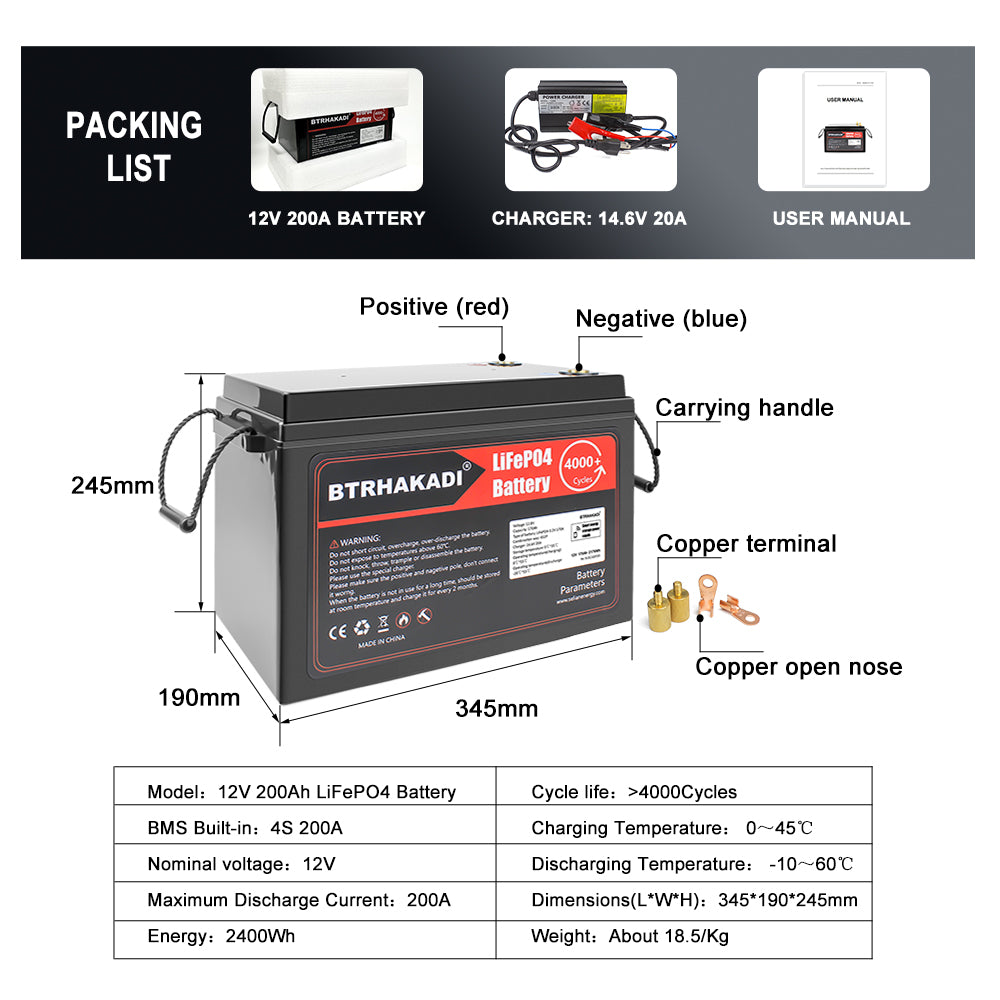

Packing List
1×14.6V 20A charger
The best match for batteries

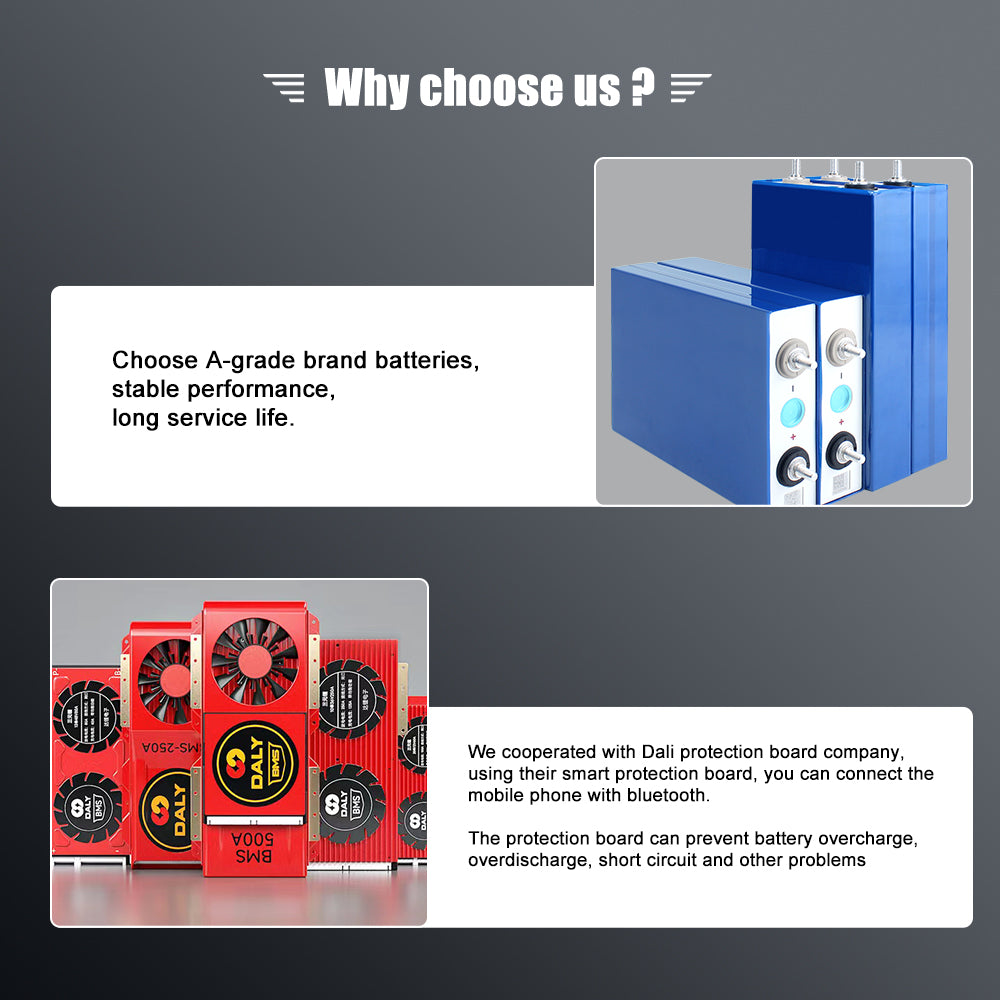

Each battery pack requires a BMS to monitor the voltage of the battery pack and increase the service life of the battery pack.
Provide protection against overcharge/over discharge/over current, short circuit, over temperature, etc...
