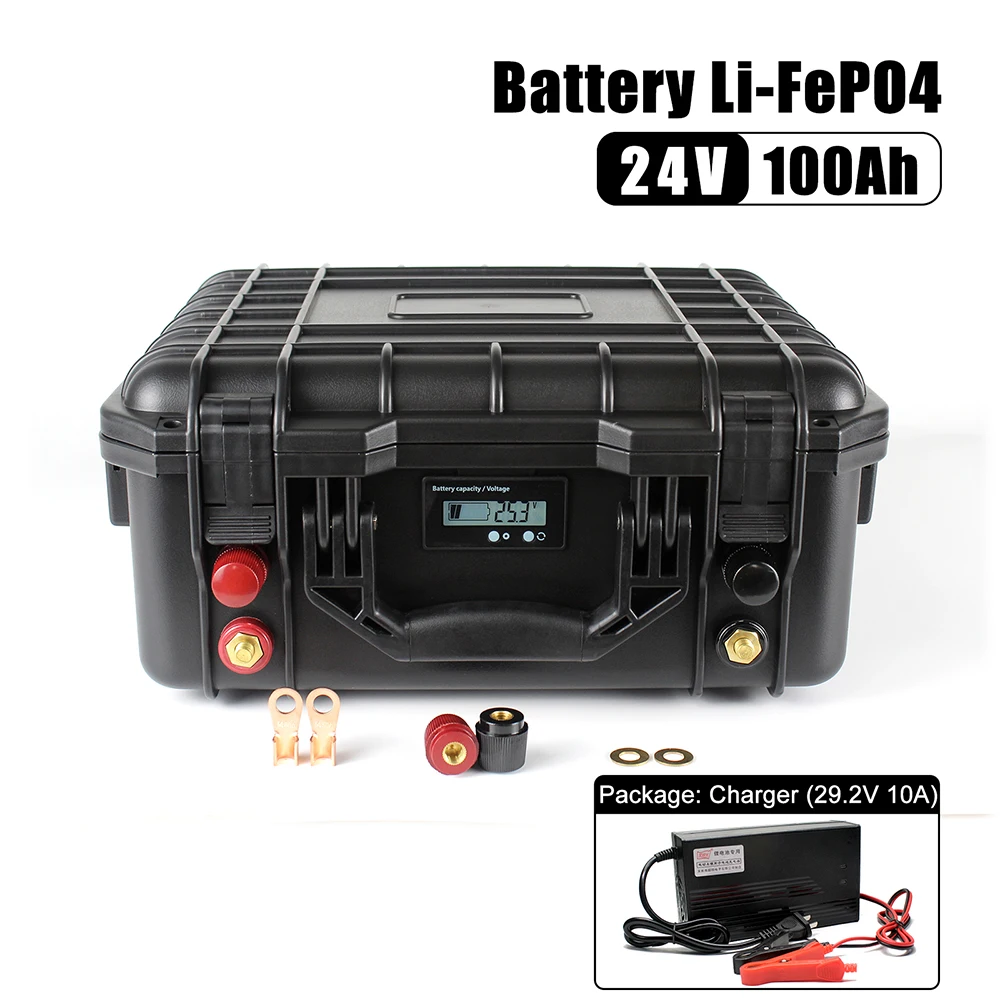

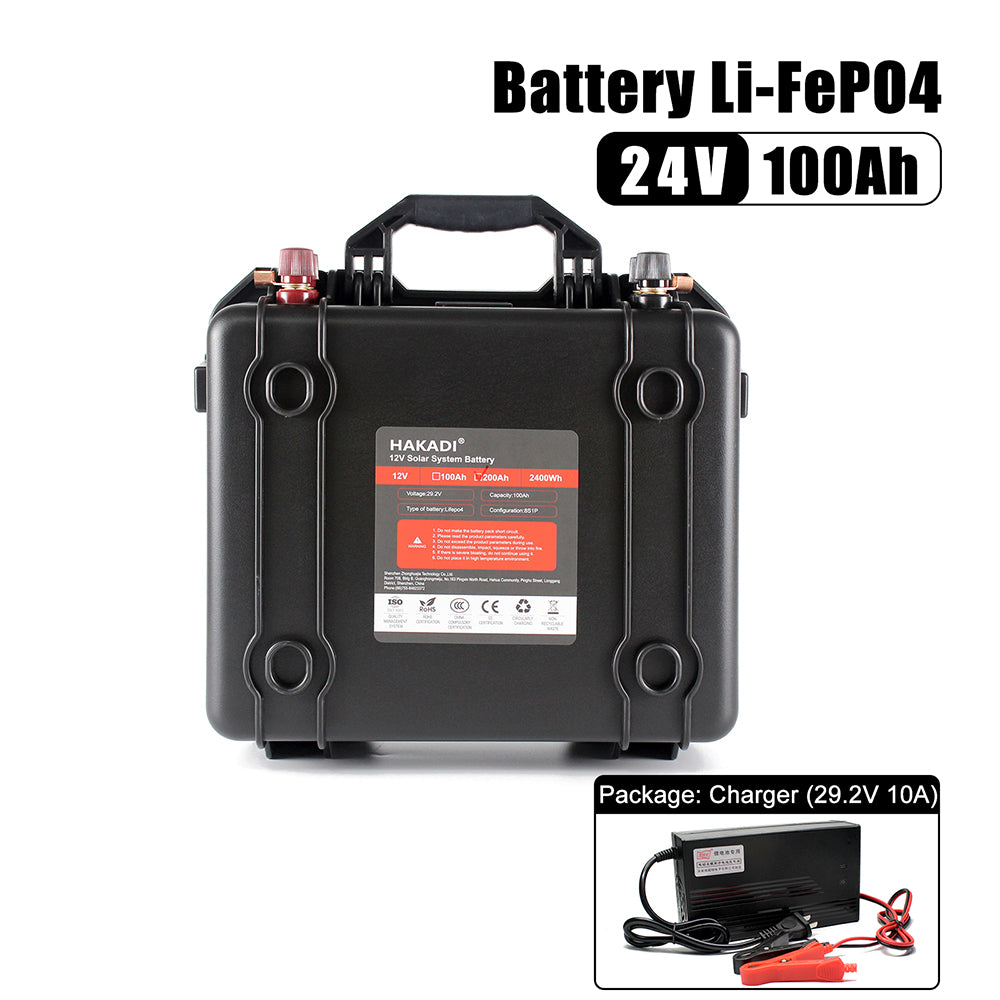

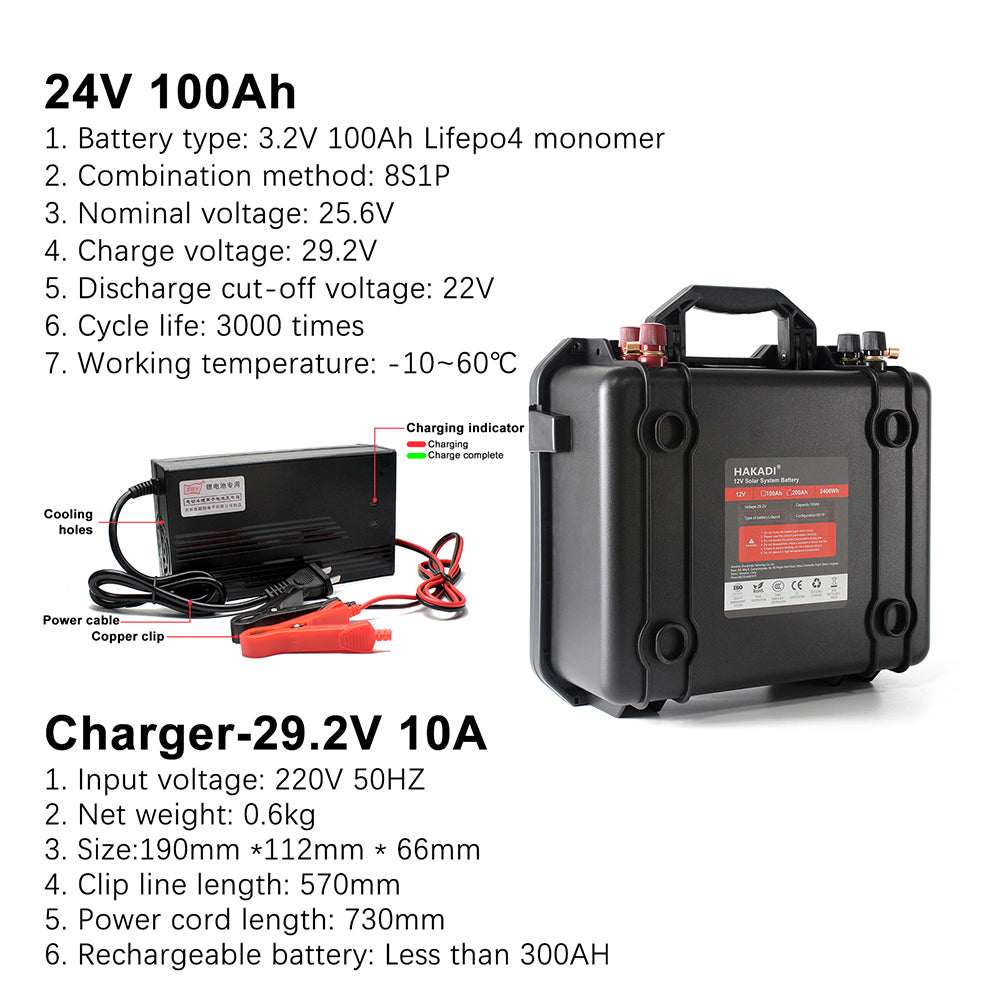

HAKADI 24V 100Ah Rechargeable Lifepo4 Battery Pack With 29.2V 10A Charger and BMS Waterproof Rechargeable Battery For UPS Power Solar RV EV

Product Specification

Model: 24V 100Ah Lifepo4 battery pack
Battery type: 3.2V 100Ah Lifepo4 monomer
Combination method: 8S1P
Nominal capacity: 100Ah
Nominal voltage: 12.8V

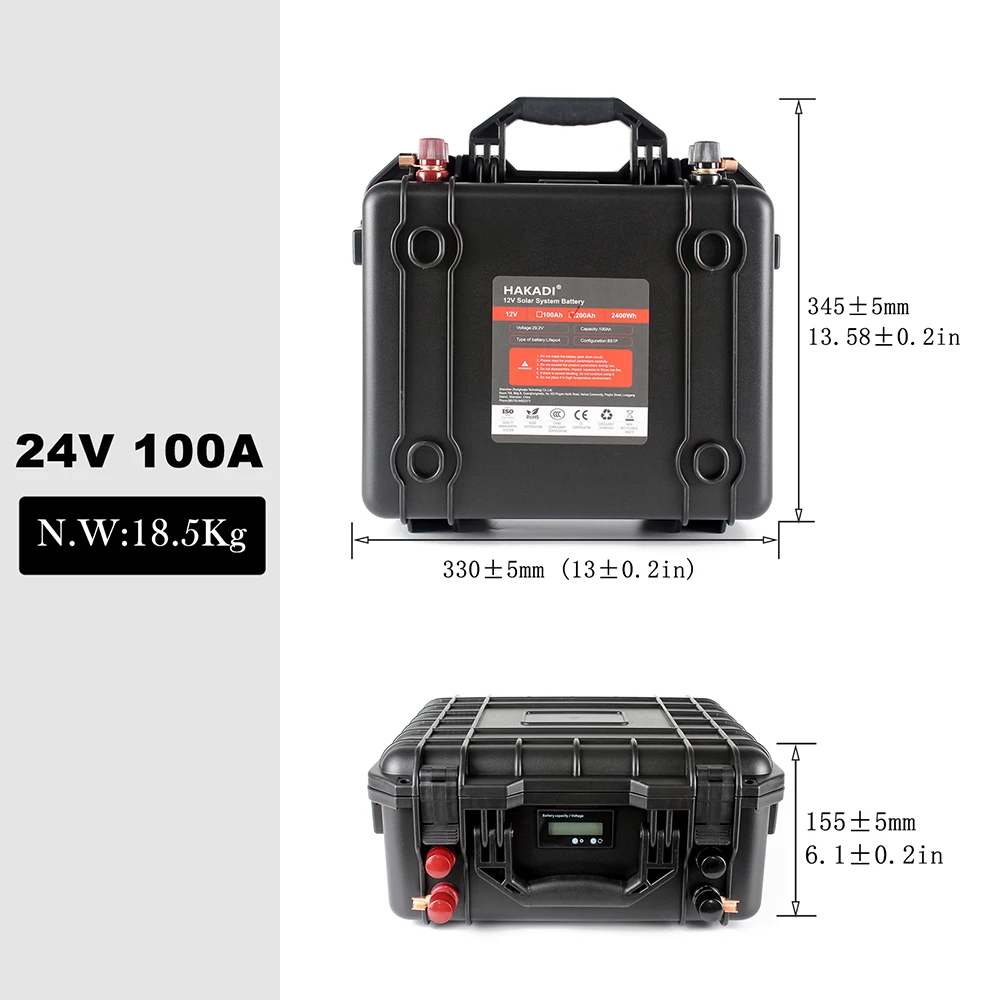

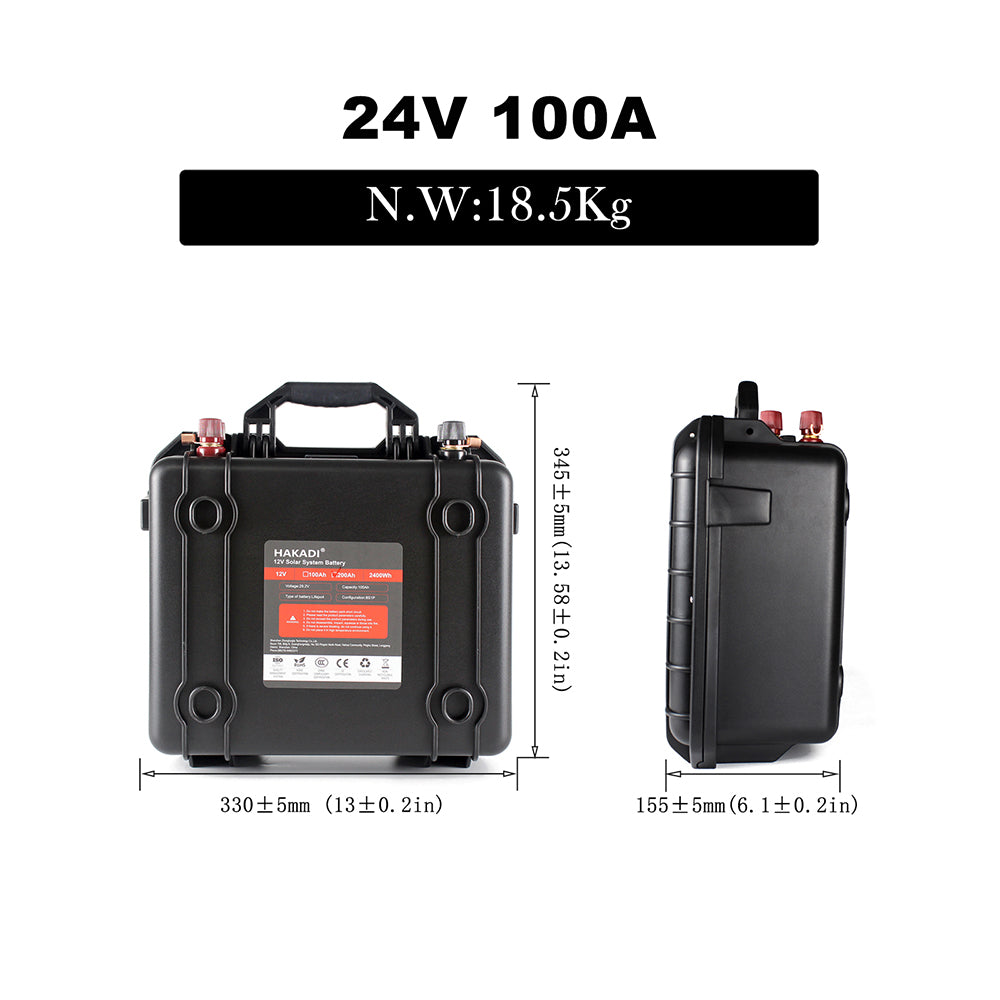

Battery size: 390*130*400mm
Battery weight: about 18.6kg
Cycle life: more than 3000 times, DOD 80%
Charge voltage : 25.6V
Standard charging method: Constant Current 0.2C，Constant Voltage 29.2V，0.01C cut-off
Max. charge current: 50A
Cut-off voltage: 20V
Max Continuous discharge current: 100A
Over current protection: 150A
Overcharge protection voltage : 29.2V + 0.05V
Over discharge protection voltage : 20.0V + 0.05V
Operating Temperature
Charging: 0～45℃
Discharge: -10～60℃
Battery warranty: 12 months
Battery warranty: 12 months

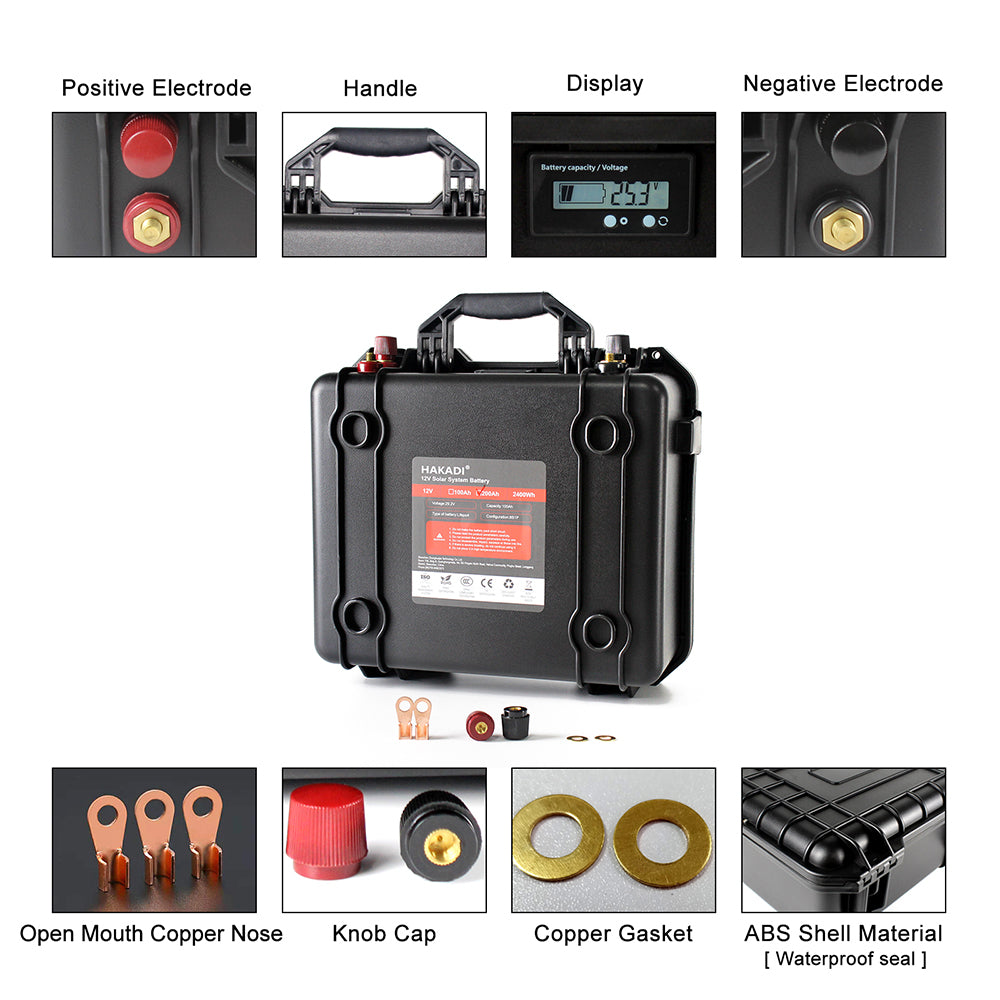

Packing List

Warranty

The warranty period is 12 months from the date you receive.
We only replace new cell for free due to the failure of manufacturing.
Before the shipment, we will detect the cell voltage/resistance/appearance and other issues. we can only ensure that single cell is good before the shipment.
When arrival you can test the cells within 1 week, if you found problems please contact us for refund or replace. Any return behavior buyers need to be responsible for shipping fee.

Application

Engine Starting Battery Commercial Bus and Transit:
E-car, E-bus, Golf cart, E-bike, Scooter, RV, Marine, Tourist car, Caravan, Wheel chair,
E-truck, E-sweeper, Floor cleaner, E-walker etc.Intellectual Robots,Power tools: electric drills, toys,Energy Storage
Solar-Wind Power System,City Grid (On/Off)
Back-up System and UPS,CATV system, Computer Server Center, Medical Instrument,Other Applications
Security and Electronics, Mobile POS, Mining Light / Torch / LED Light / Emergency Light
