HAKADI 48V 16S DIY LiFePO4 280Ah-314Ah Vertical DIY Battery Box Kits with JK BMS and Wheels Free Shipping
HAKADI 48V 16S DIY LiFePO4 280Ah-314Ah Vertical DIY Battery Box Kits with JK BMS and Wheels Free Shipping
Couldn't load pickup availability
🛒EU, USA, Ukraine, Price including shipping and VAT！
🛒EU, USA, Ukraine, Price including shipping and VAT！
We will offer you a better price!
please feel free to contact us via email or the Whatsapp number and Email at the bottom of the page, we will help you and look forward to doing business with you!
Email:linda@szhakadi.com
Whatsapp:+86 13202568382
🔋Battery Warranty
🔋Battery Warranty
LiFePO4 Battery 5 years
Sodium ion Battery 5 years
LTO Battery 10 years
NMC Battery 5 years
LiFePO4 Battery Pack 5 years
The warranty period is from the date you receive.
We only replace new cell for free due to the failure of manufacturing.
Before the shipment, we will detect the cell voltage/resistance/appearance and other issues. we can only ensure that single cell is good before the shipment.
When arrival you can test the cells within 1 week. If you find any problems, please contact us for refund or replace. Any return behavior buyers need to be responsible for shipping fee.
Product Description

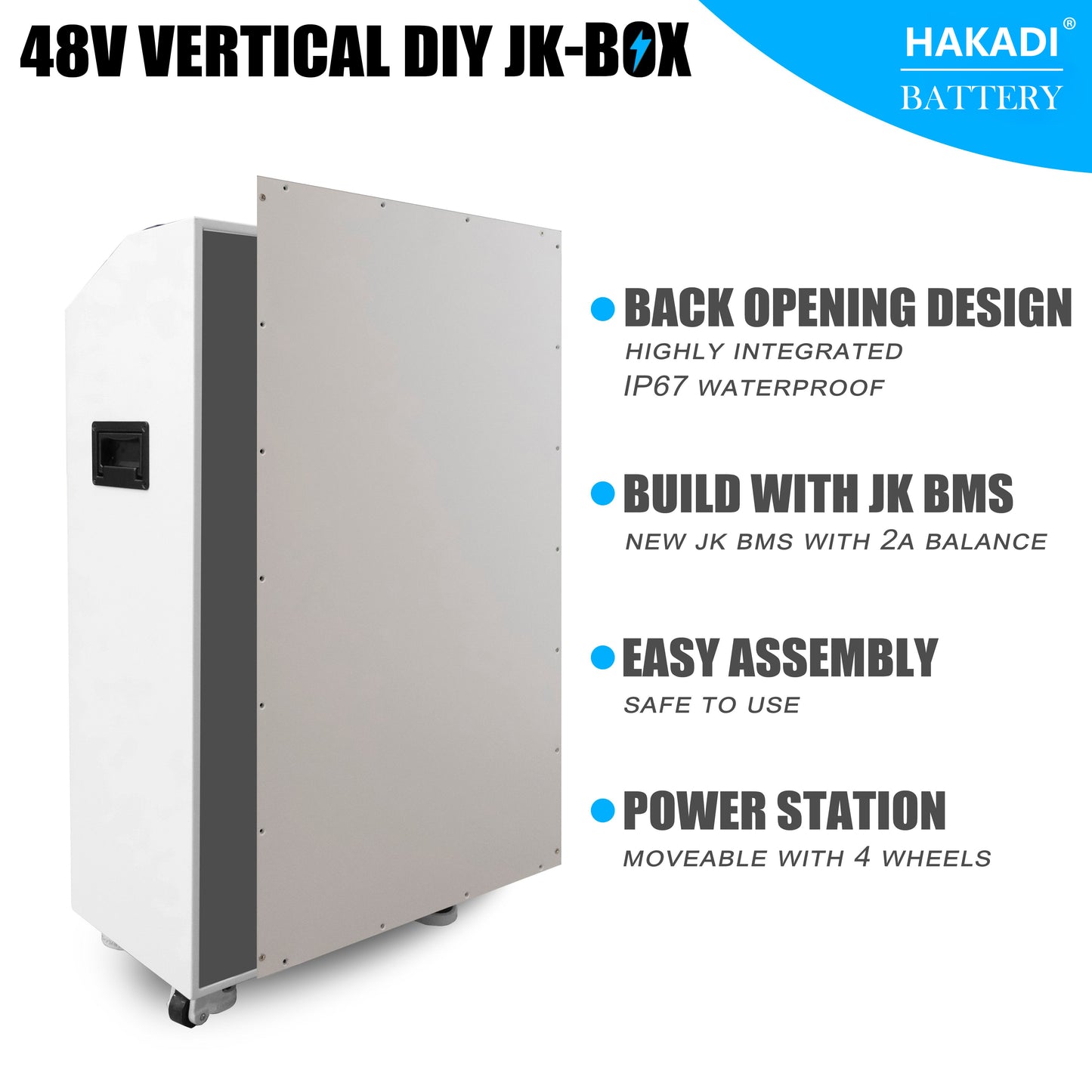

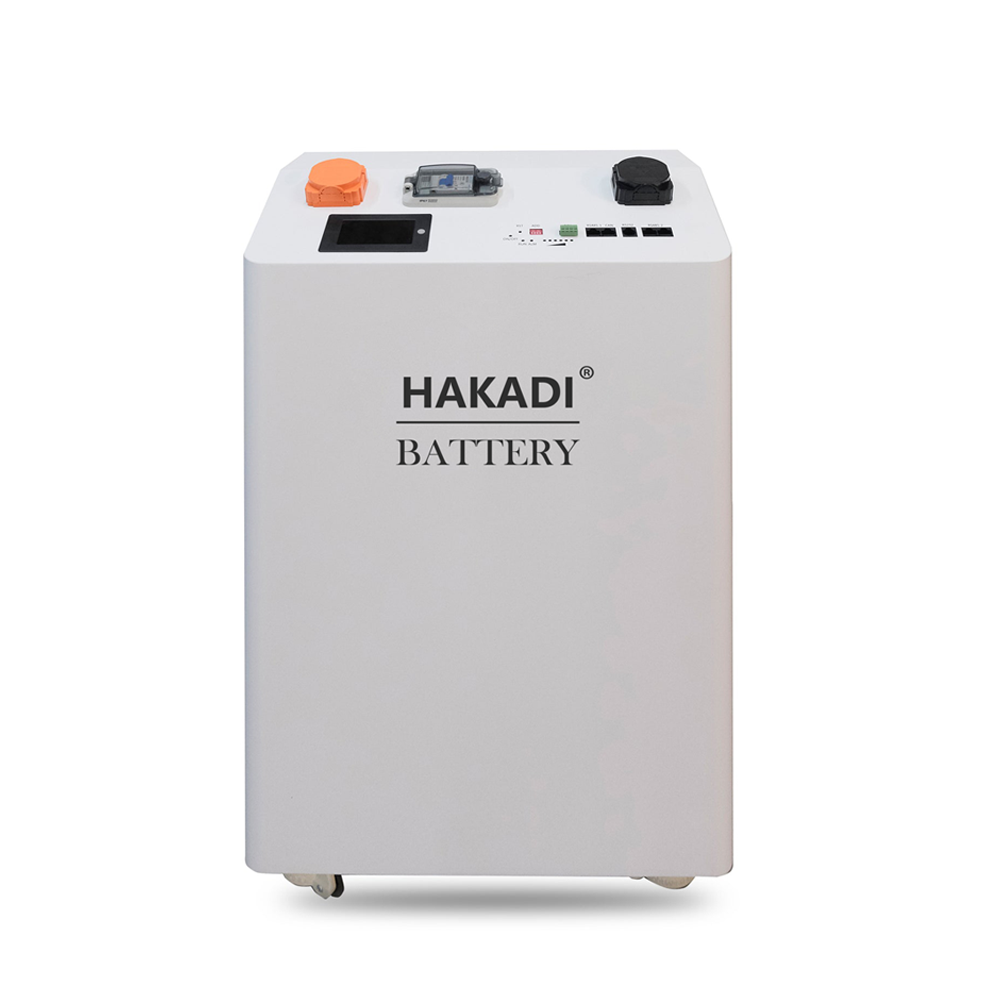

Specification(Battery Vertical JK BMS DIY Box with wheels)
Battery Type:280/302/304/MB30/MB31/314 Cells
Material: Stainless Steel
Communication: CANBUS/RS485
BMS: 48V 16S 200A JK BMS
Nominal Voltage:51.2V
Active Balance Current:2A
Warranty:5 Years
OEM/ODM: Available
Weight:29kg
Parallel Type:up to 14 batteries

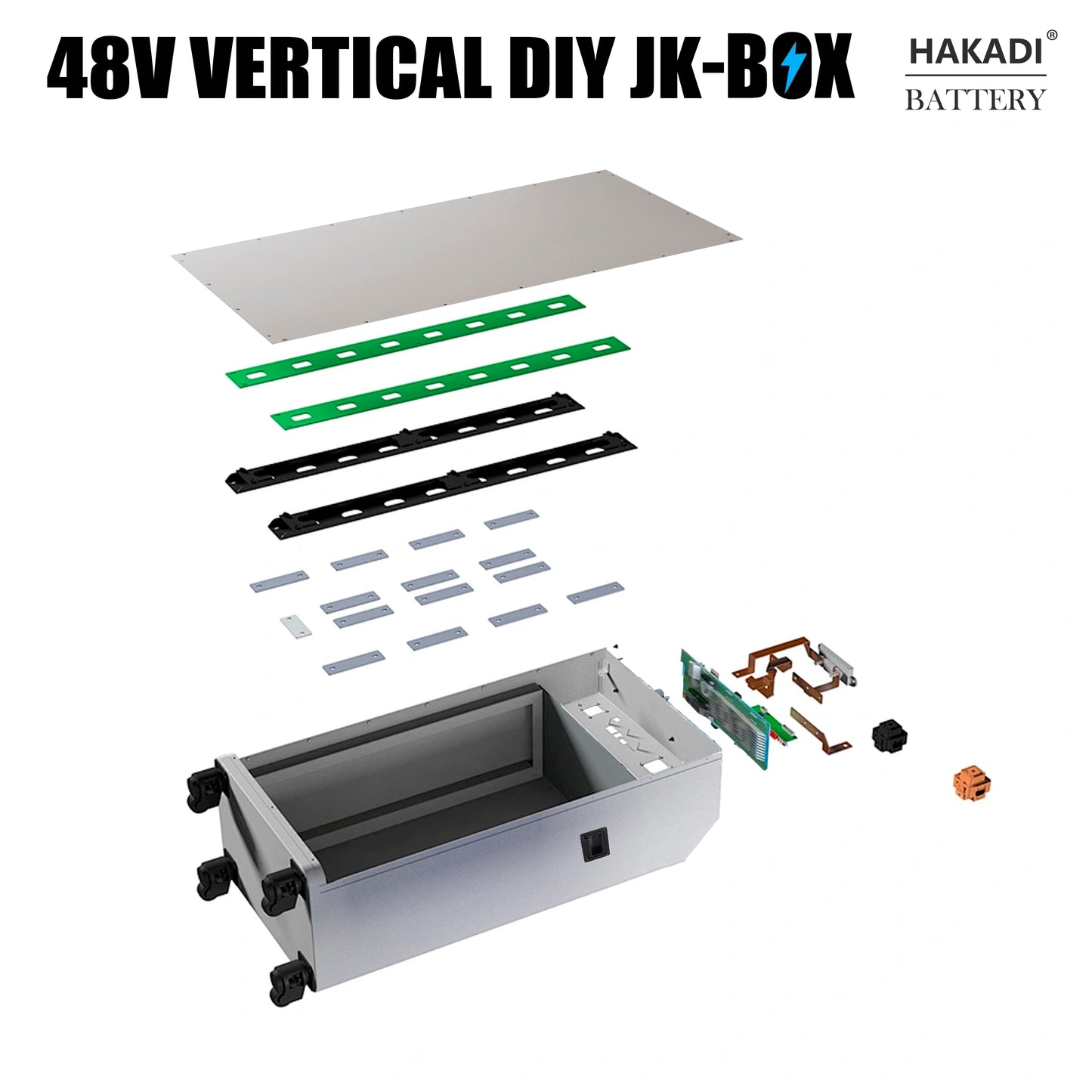

Parts List(does not come with the battery cells)
1 * Battery Case (front case,1*back Bracket)

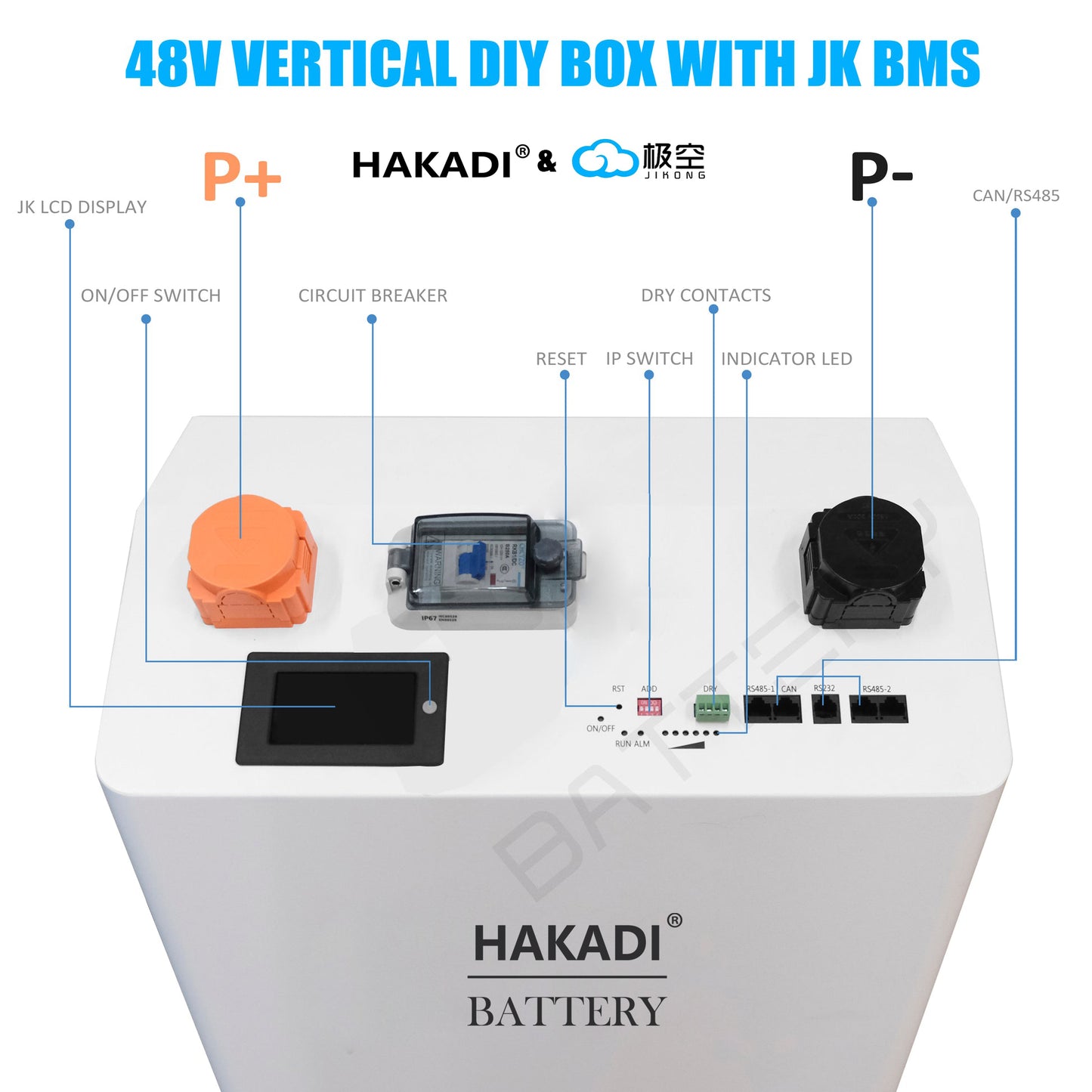

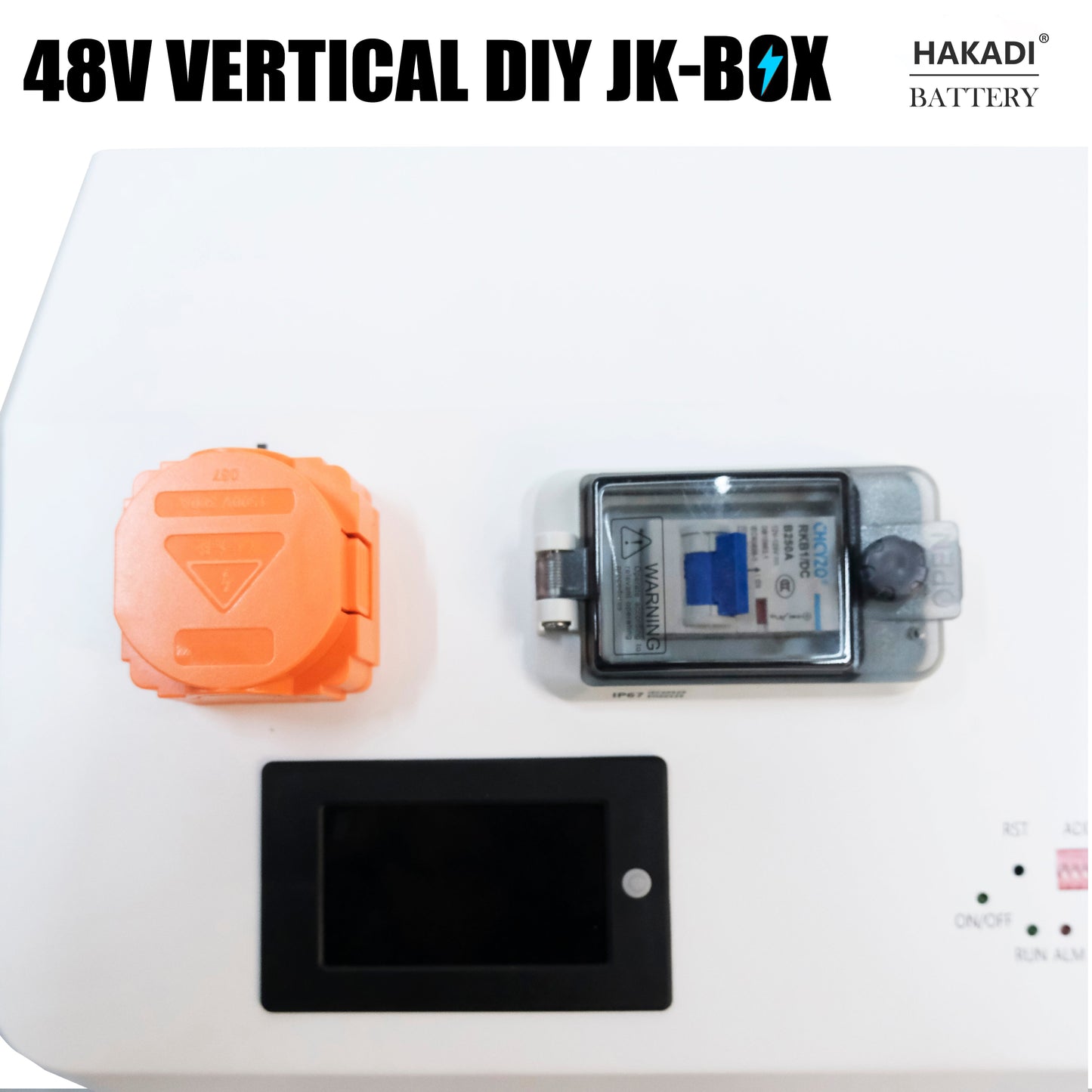

1* JK LCD display with on/off switch
16 * Epoxy board(Between cell and the case)
2 * PCB Board(with sheet copper wires) for BMS and Cells Connection+2*matched EVA Tape
2 * Handles+4*wheels

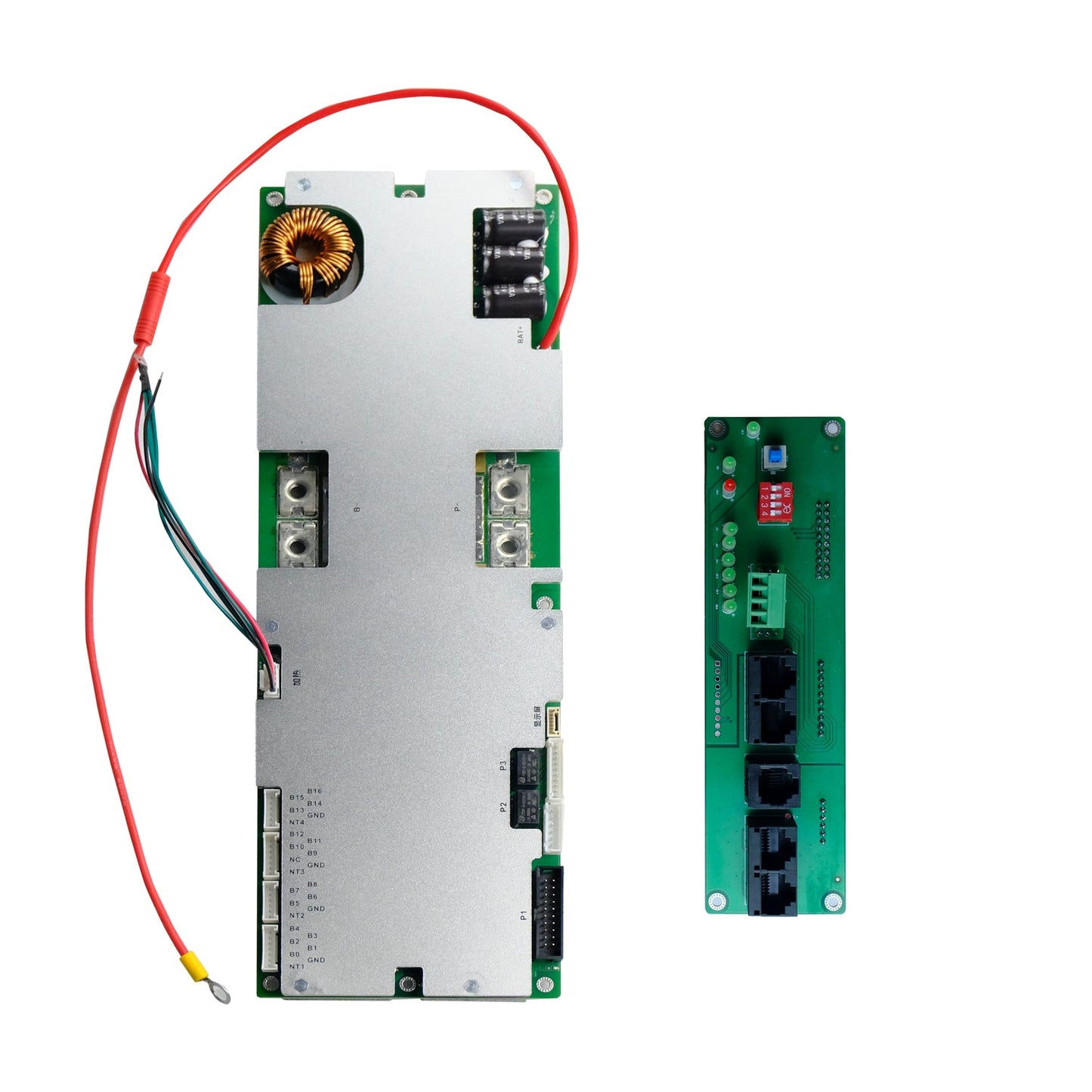

1 * 48V 16S JK inverter BMS+2*BMS wires+adapter
1 * LCD Screen+1*LCD Screen wire+4 * Button Cap

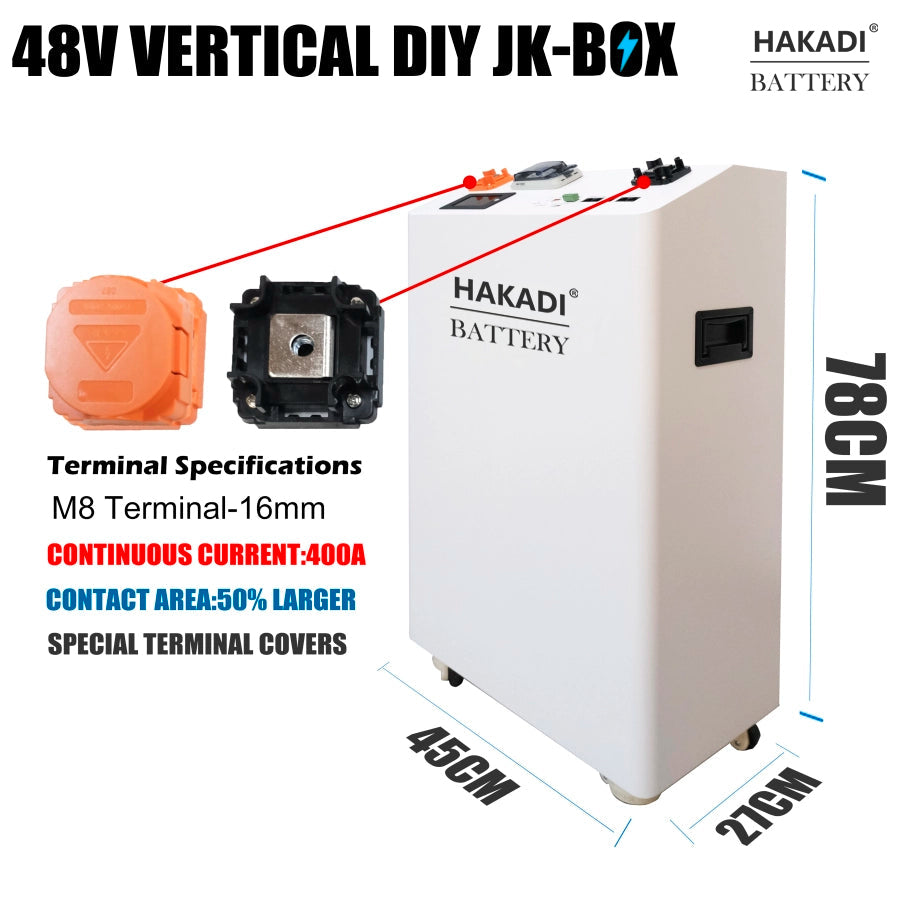

2 * Special Battery Terminals (P+ Terminal and P- Terminal)
3* Long Flexible busbars (BMS connection)
15 * Flexible busbars (Cell connection)
16 * EVA Tape (Between cells)
Other Small Accessories
Bluetooth App:
https://drive.google.com/file/d/1VkqUj50UKesQP7QZY3ZWnT9a0iyax6rt/view?usp=sharing
Free shipping from China with 40-50 working days delivery.
JK BMS APP Parameters Specifications
48V Lifepo4 battery pack placement sequence
The best match for batteries
Each battery pack requires a BMS to monitor the voltage of the battery pack and increase the service life of the battery pack.
Provide protection against overcharge/over discharge/over current, short circuit, over temperature, etc...
