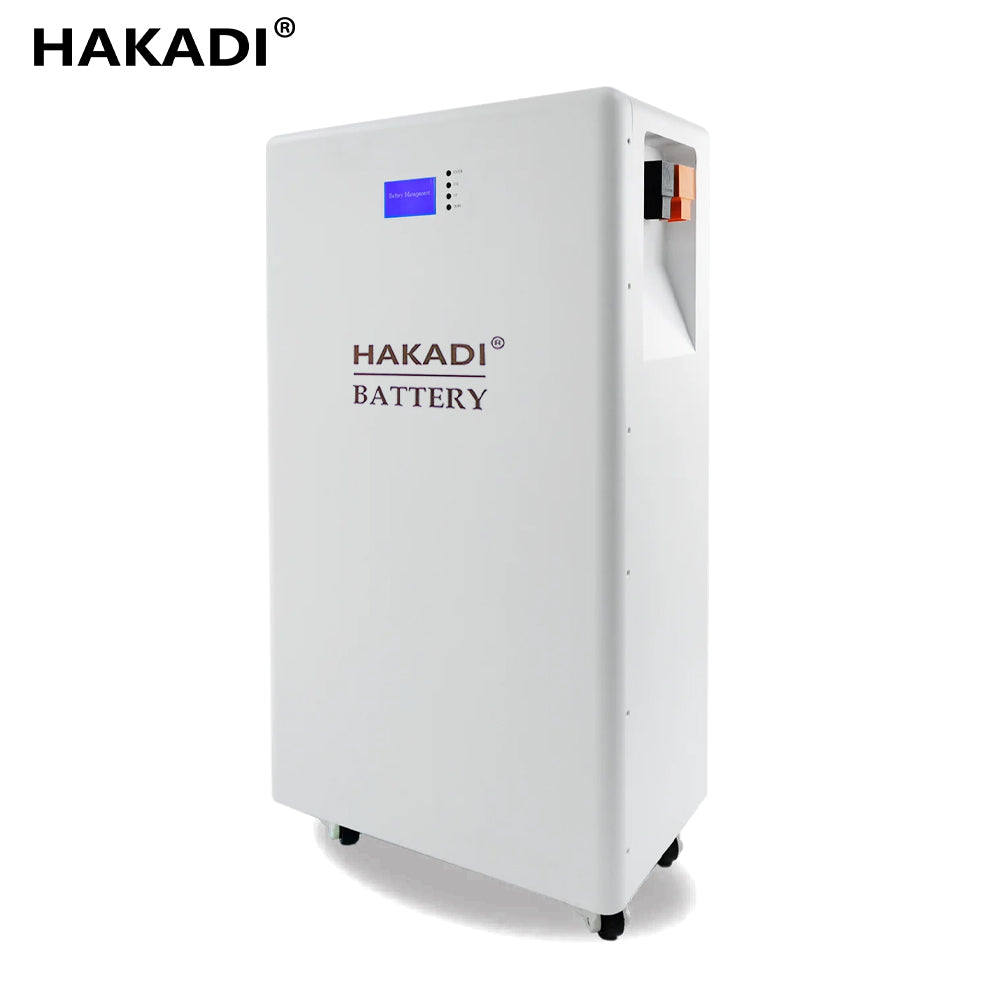

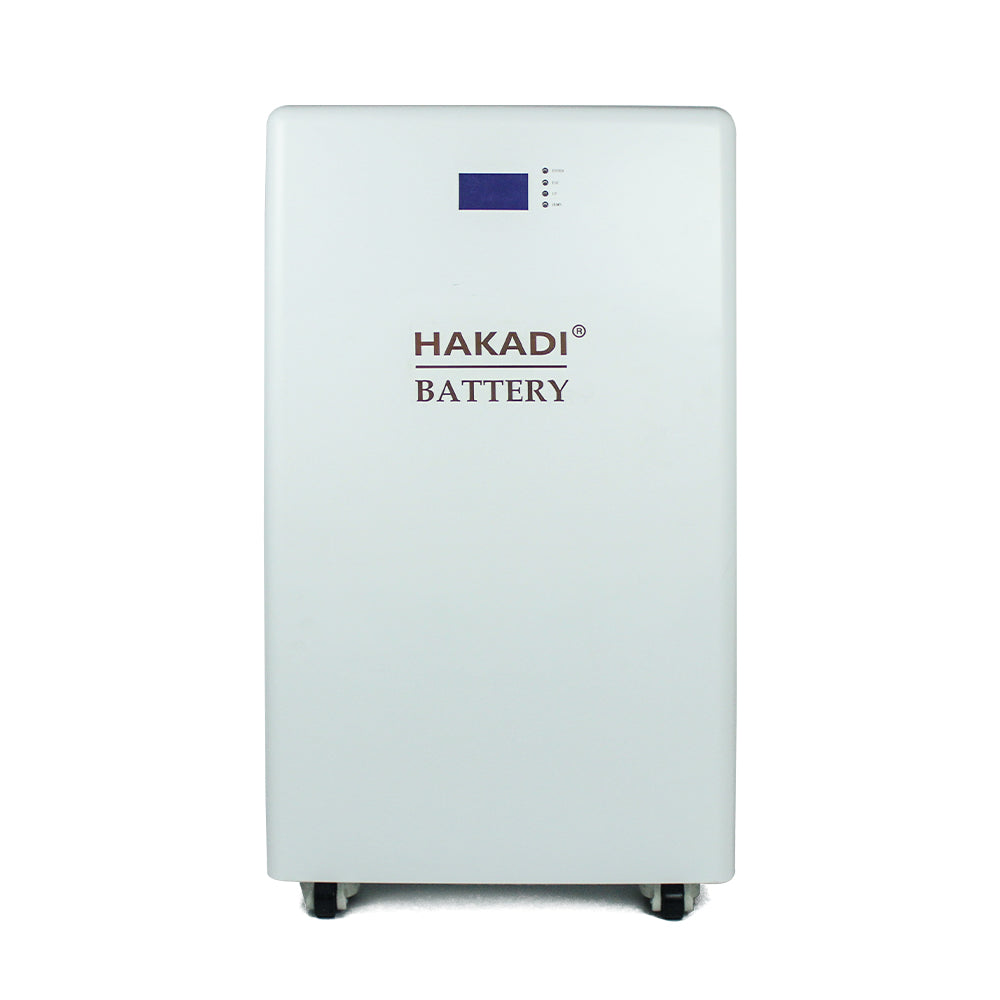

HAKADI 48V-51.2V 16S 280Ah -314Ah DIY Battery Box Standing Kits Built-in Bluetooth BMS for Home Solar Energy System
HAKADI 48V-51.2V 16S 280Ah -314Ah DIY Battery Box Standing Kits Built-in Bluetooth BMS for Home Solar Energy System
Share
🛒EU, USA, Ukraine, Free Shipping Fee and VAT Door to Door Shipping!
🛒EU, USA, Ukraine, Free Shipping Fee and VAT Door to Door Shipping!
We will offer you a better price!
please feel free to contact us via email or the Whatsapp number and Email at the bottom of the page, we will help you and look forward to doing business with you!
Email:linda@szhakadi.com
Whatsapp:+86 13202568382
🔋Battery Warranty
🔋Battery Warranty
LiFePO4 Battery 5 years
Sodium ion Battery 5 years
LTO Battery 10 years
NMC Battery 5 years
LiFePO4 Battery Pack 5 years
The warranty period is from the date you receive.
We only replace new cell for free due to the failure of manufacturing.
Before the shipment, we will detect the cell voltage/resistance/appearance and other issues. we can only ensure that single cell is good before the shipment.
When arrival you can test the cells within 1 week. If you find any problems, please contact us for refund or replace. Any return behavior buyers need to be responsible for shipping fee.

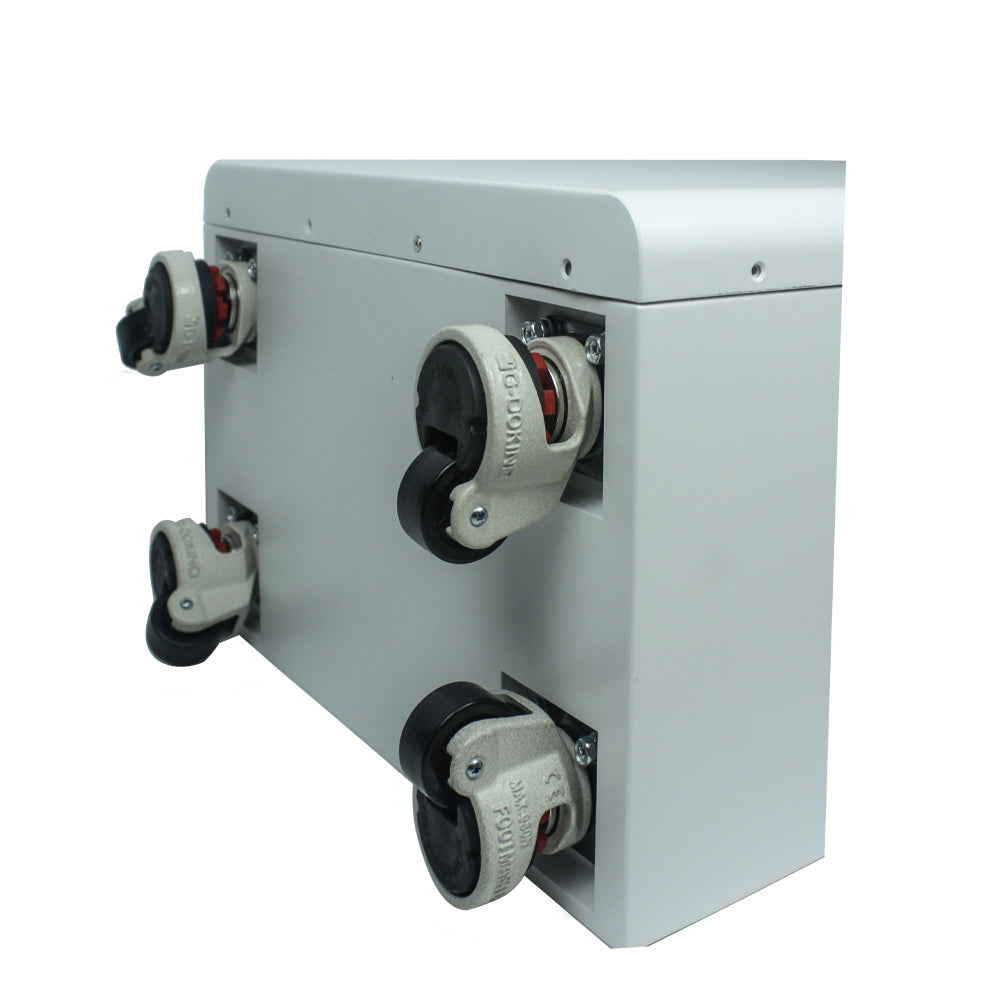

Specification(48V DIY Battery Box with wheels)
Battery Type:280-314Ah Cell
Material: Stainless Steel

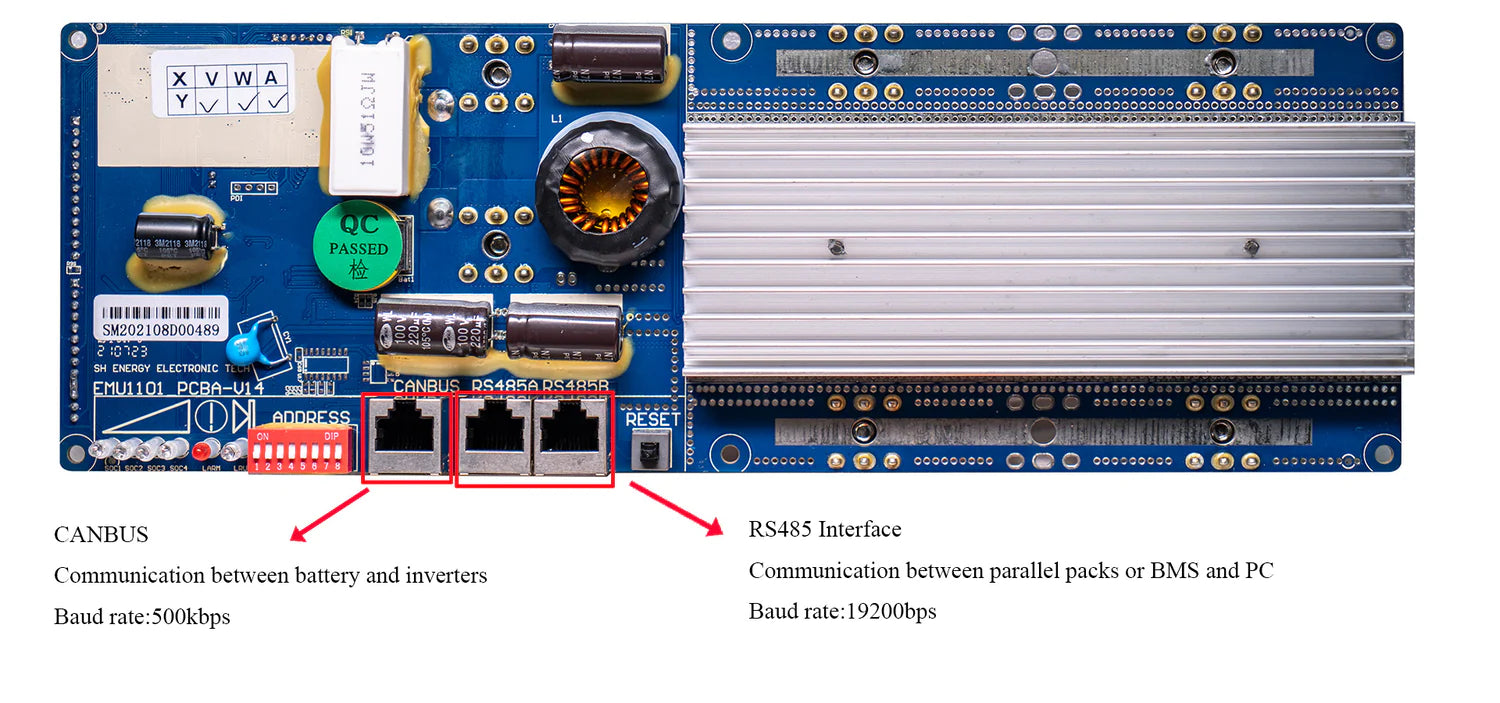

Communication: CANBUS/RS485
BMS: 48V 16S /200A BMS
Nominal Voltage:51.2V
Current 200A
Warranty:5 Years
OEM/ODM: Available
Weight:29kg
Parallel Type:up to 14 batteries

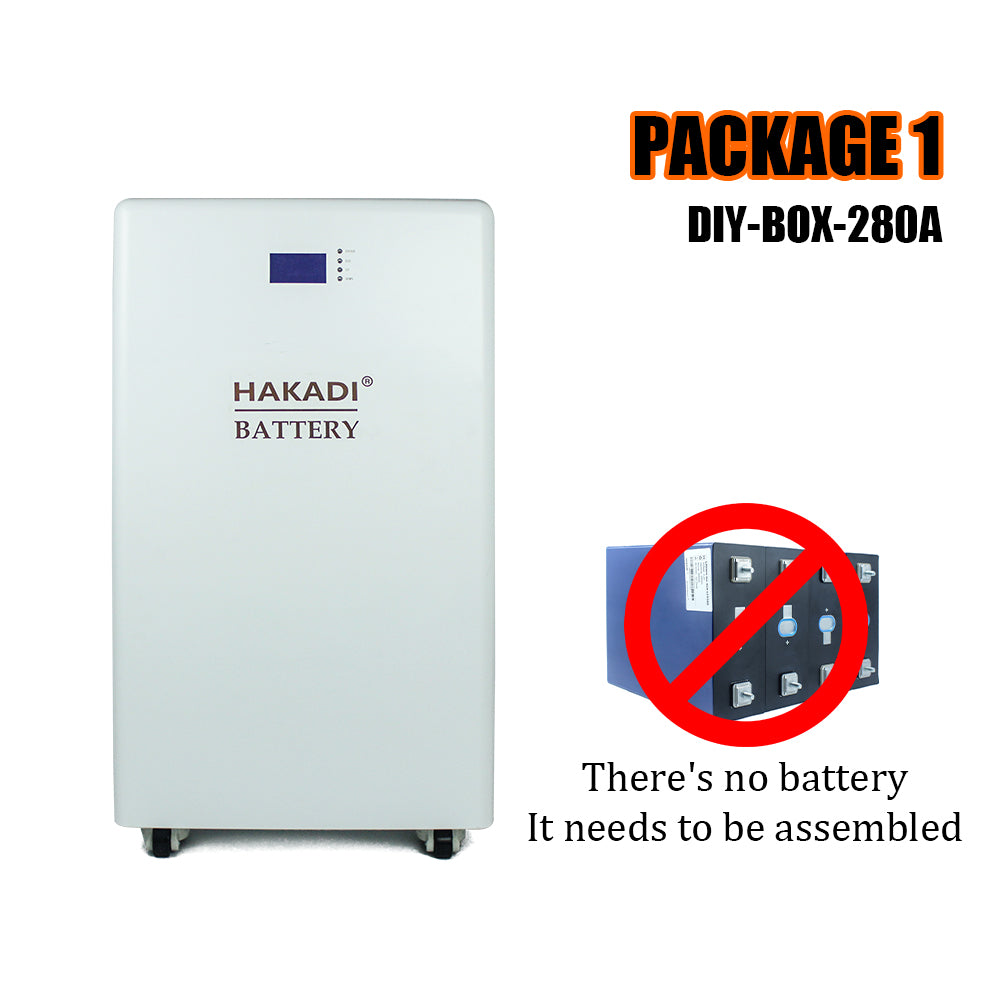

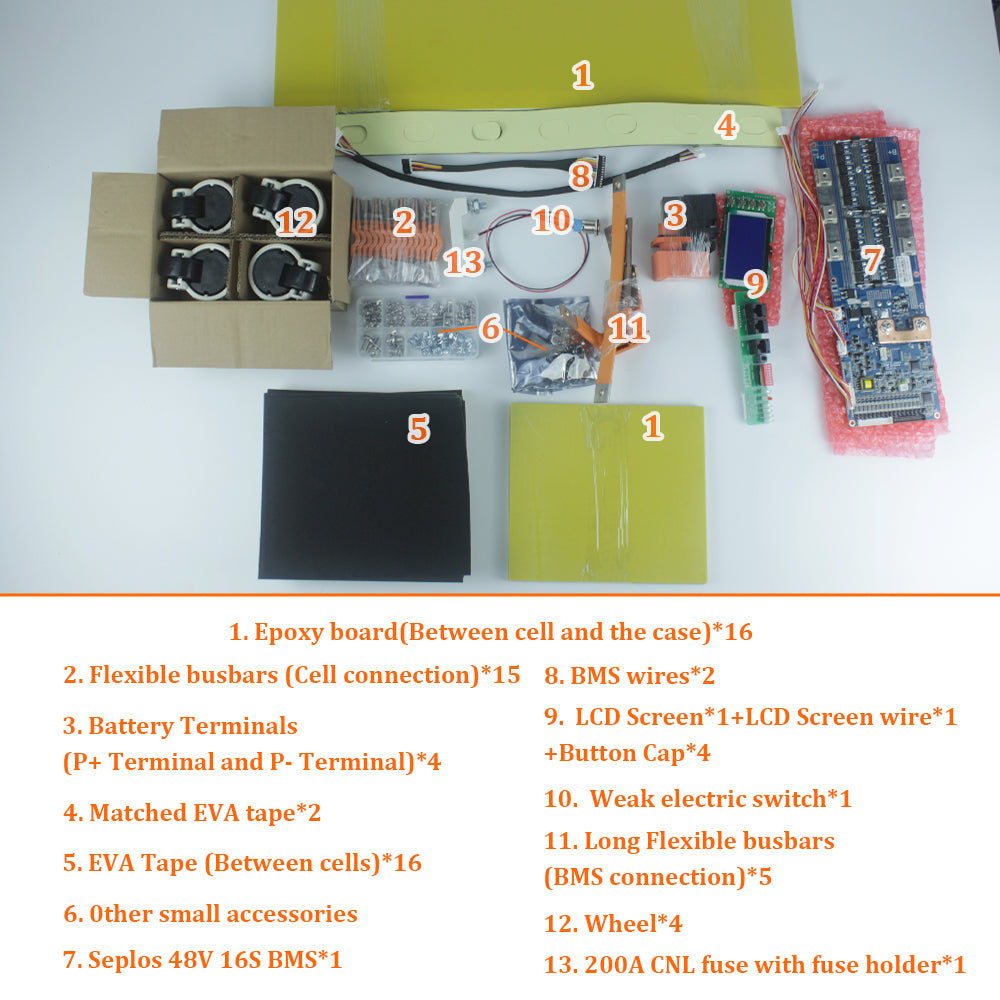

Parts List(does not come with the battery cells!)
1 * Battery Case (Bottom case, Front Bracket, 2*Top Bracket, Front Panel,Top cover)
1* 200A CNL fuse with fuse holder
16 * Epoxy board(Between cell and the case)
2 * PCB Board(with sheet copper wires) for BMS and Cells Connection+2*matched EVA Tape
1 * Weak electric switch
1 * 48V 16S BMS+2*BMS wires+adapter
1 * LCD Screen+1*LCD Screen wire+4 * Button Cap

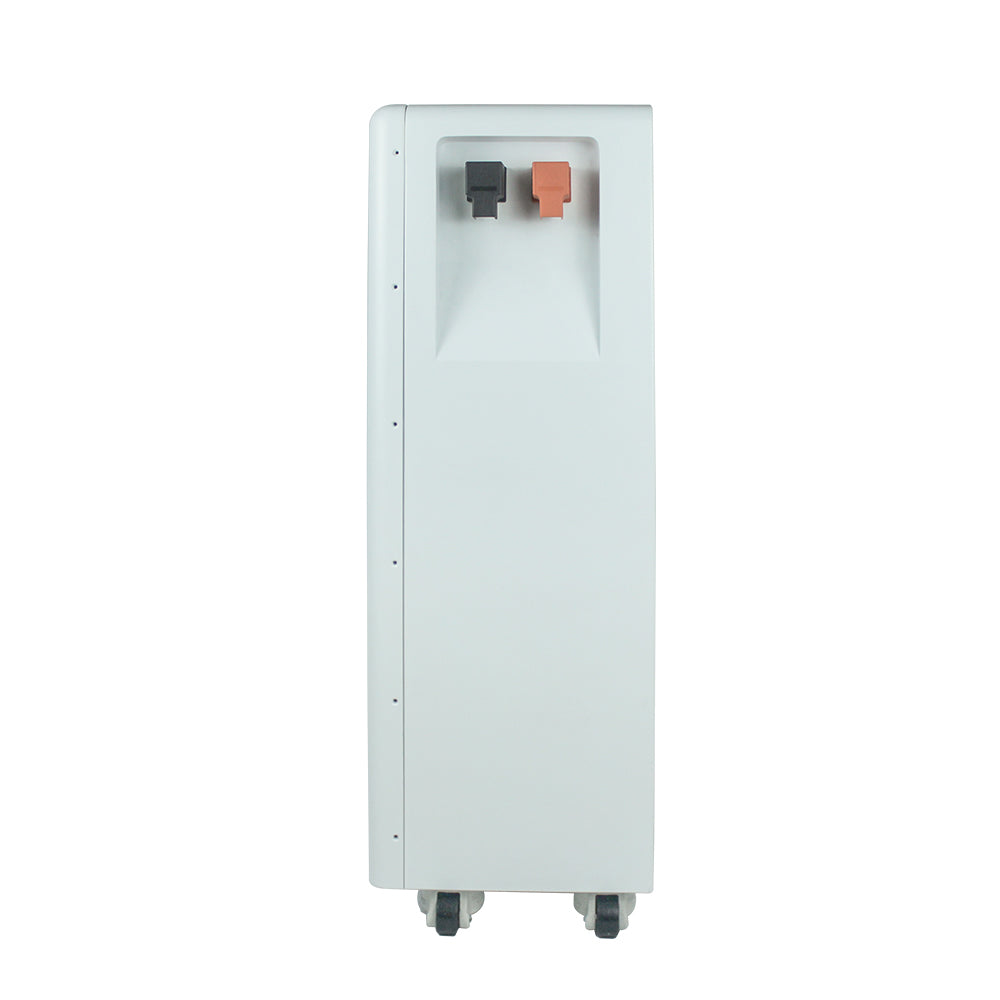

4 * Battery Terminals (P+ Terminal and P- Terminal)
5* Long Flexible busbars (BMS connection)

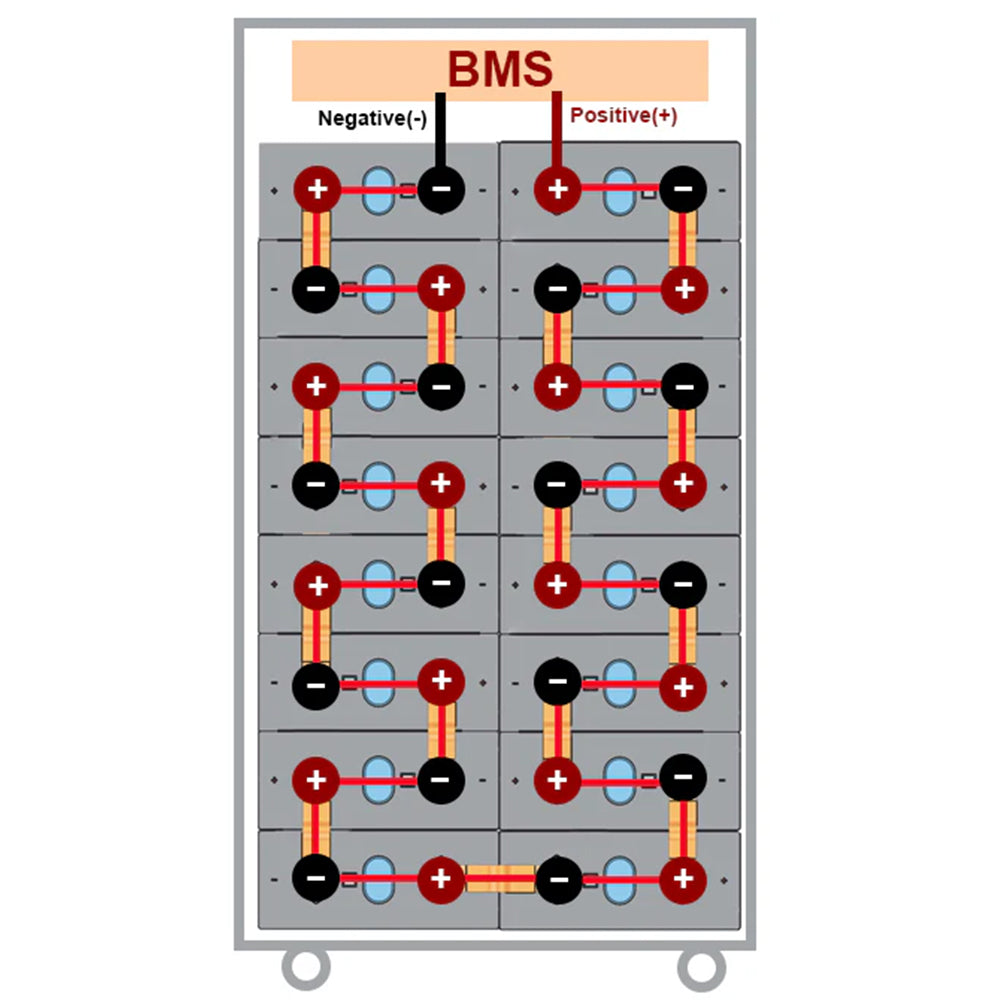

15 * Flexible busbars (Cell connection)
4 * Upper and Lower Latch lock
16 * EVA Tape (Between cells)
Other Small Accessories
Download the software:
https://drive.google.com/drive/folders/1BdpkjrWTS8rM7Ph8gk29n09wh8JujVtX?usp=sharing
Bluetooth App(Android):
https://drive.google.com/file/d/1VkqUj50UKesQP7QZY3ZWnT9a0iyax6rt/view?usp=sharing
Free shipping from China 35-40Days delivery.

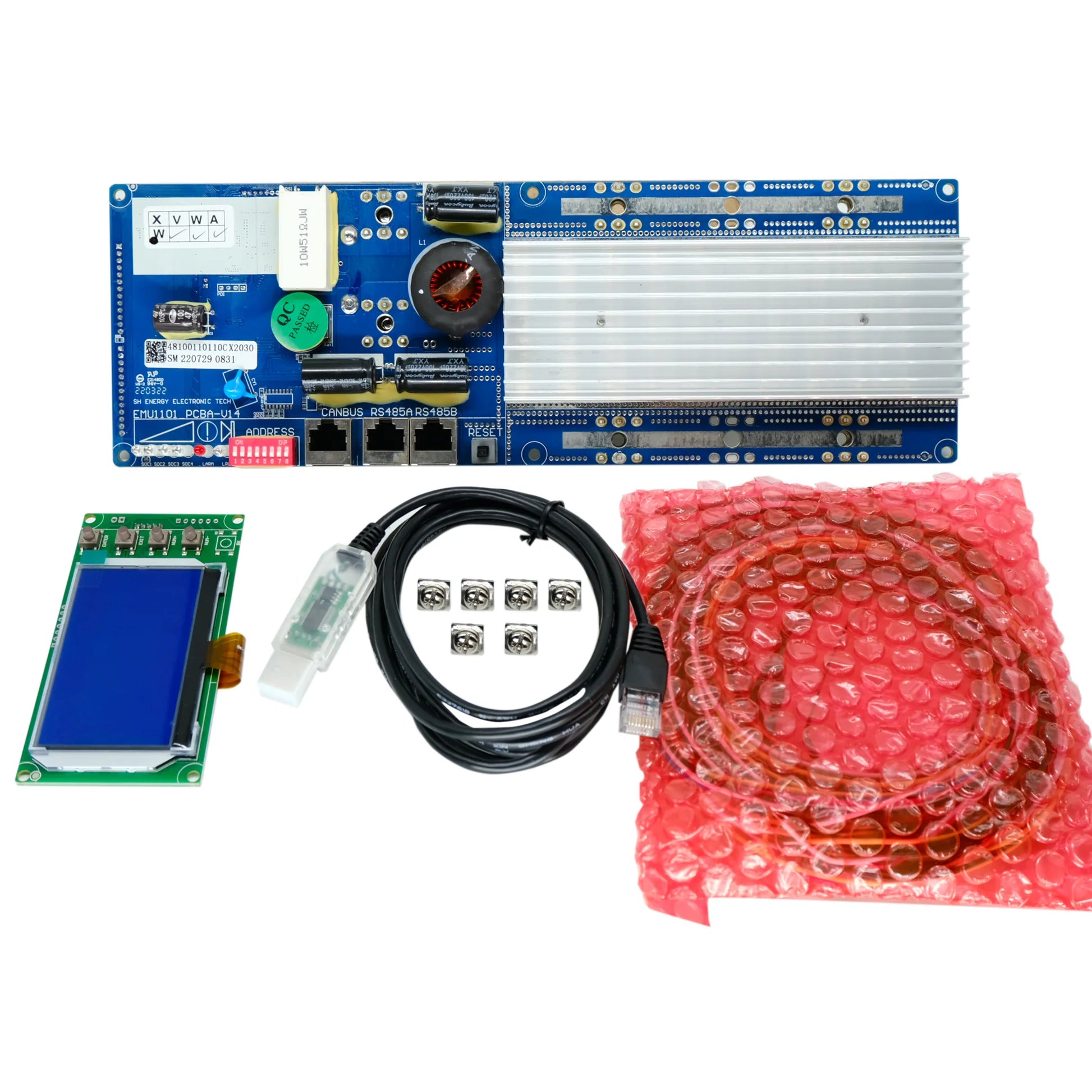

The best match for batteries
Each battery pack requires a BMS to monitor the voltage of the battery pack and increase the service life of the battery pack.
Provide protection against overcharge/over discharge/over current, short circuit, over temperature, etc...
