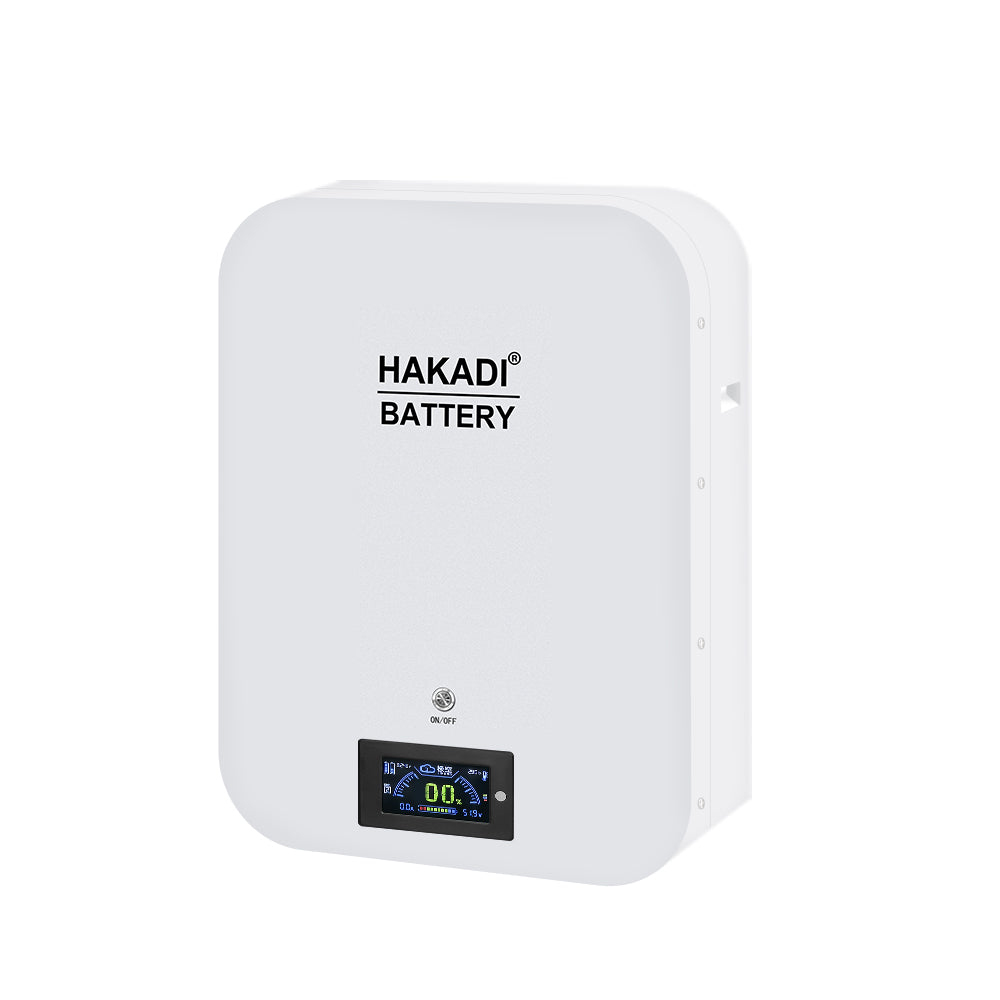

HAKADI 48V LiFePO4 100Ah DIY Battery BOX Wall-mounted 51.2V Case Smart Bluetooth JK BMS for ,RV,Solar Energy
HAKADI 48V LiFePO4 100Ah DIY Battery BOX Wall-mounted 51.2V Case Smart Bluetooth JK BMS for ,RV,Solar Energy
Couldn't load pickup availability
🛒EU, USA, Ukraine, Price including shipping and VAT！
🛒EU, USA, Ukraine, Price including shipping and VAT！
We will offer you a better price!
please feel free to contact us via email or the Whatsapp number and Email at the bottom of the page, we will help you and look forward to doing business with you!
Email:linda@szhakadi.com
Whatsapp:+86 13202568382
🔋Battery Warranty
🔋Battery Warranty
LiFePO4 Battery 5 years
Sodium ion Battery 5 years
LTO Battery 10 years
NMC Battery 5 years
LiFePO4 Battery Pack 5 years
The warranty period is from the date you receive.
We only replace new cell for free due to the failure of manufacturing.
Before the shipment, we will detect the cell voltage/resistance/appearance and other issues. we can only ensure that single cell is good before the shipment.
When arrival you can test the cells within 1 week. If you find any problems, please contact us for refund or replace. Any return behavior buyers need to be responsible for shipping fee.
Specification
Battery Type:100Ah battery
Material: Stainless Steel

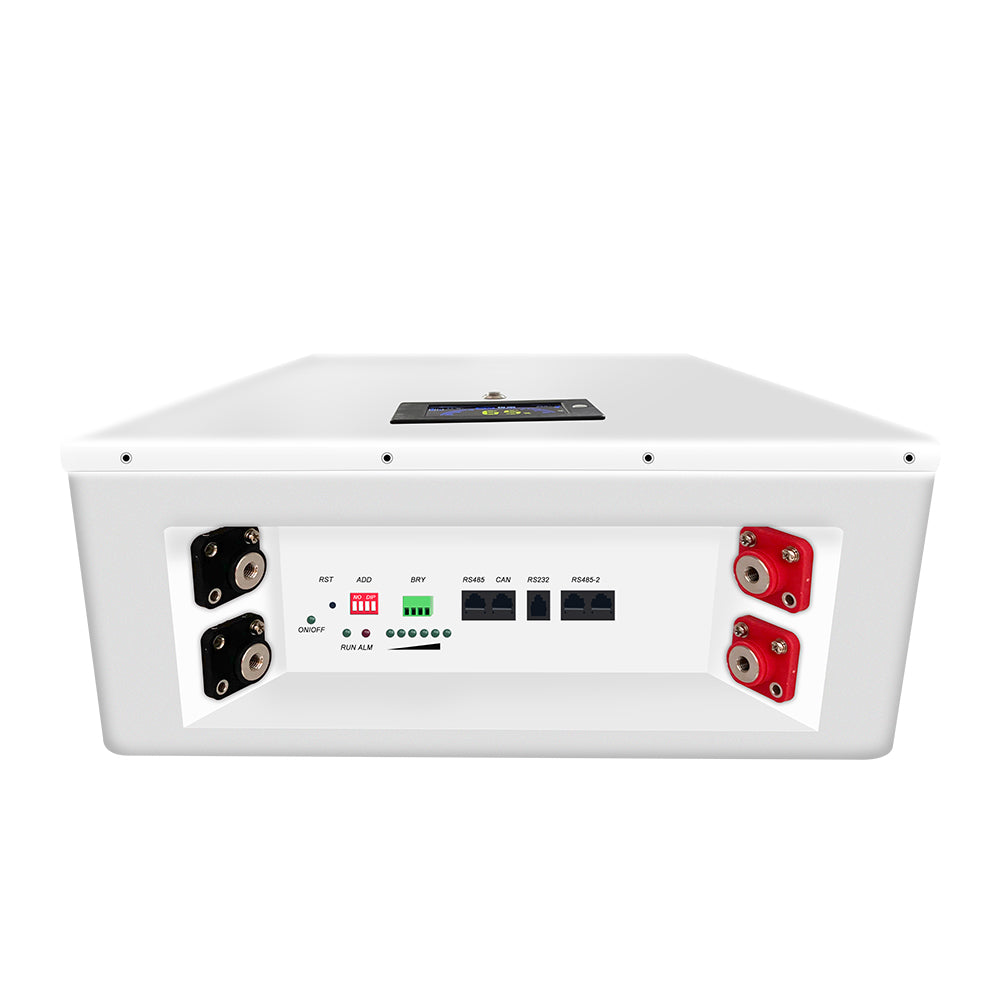

Communication: CANBUS and RS485(accept both)
BMS: 48V 16S Bluetooth
Nominal Voltage:51.2V
Current 100A
Warranty:3 Years
OEM/ODM: Available
Weight:11kg

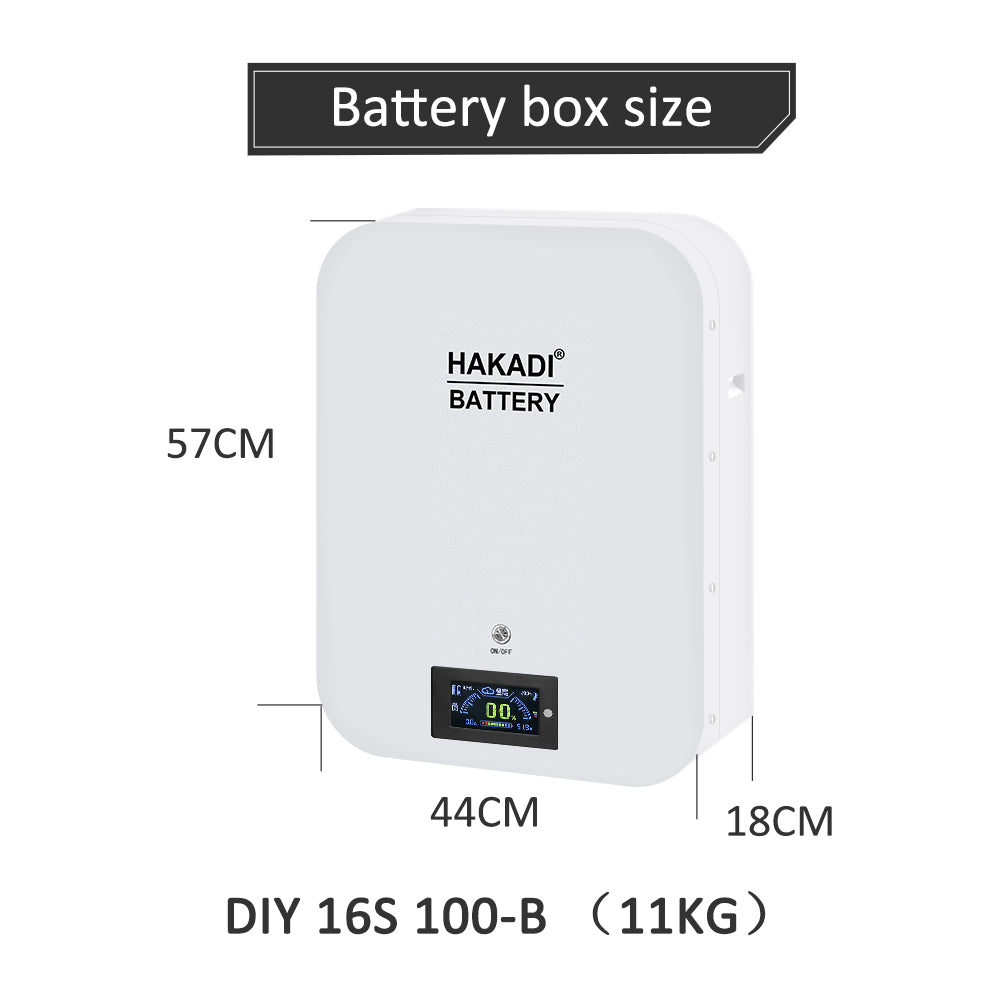

Size:44*18*57Cm

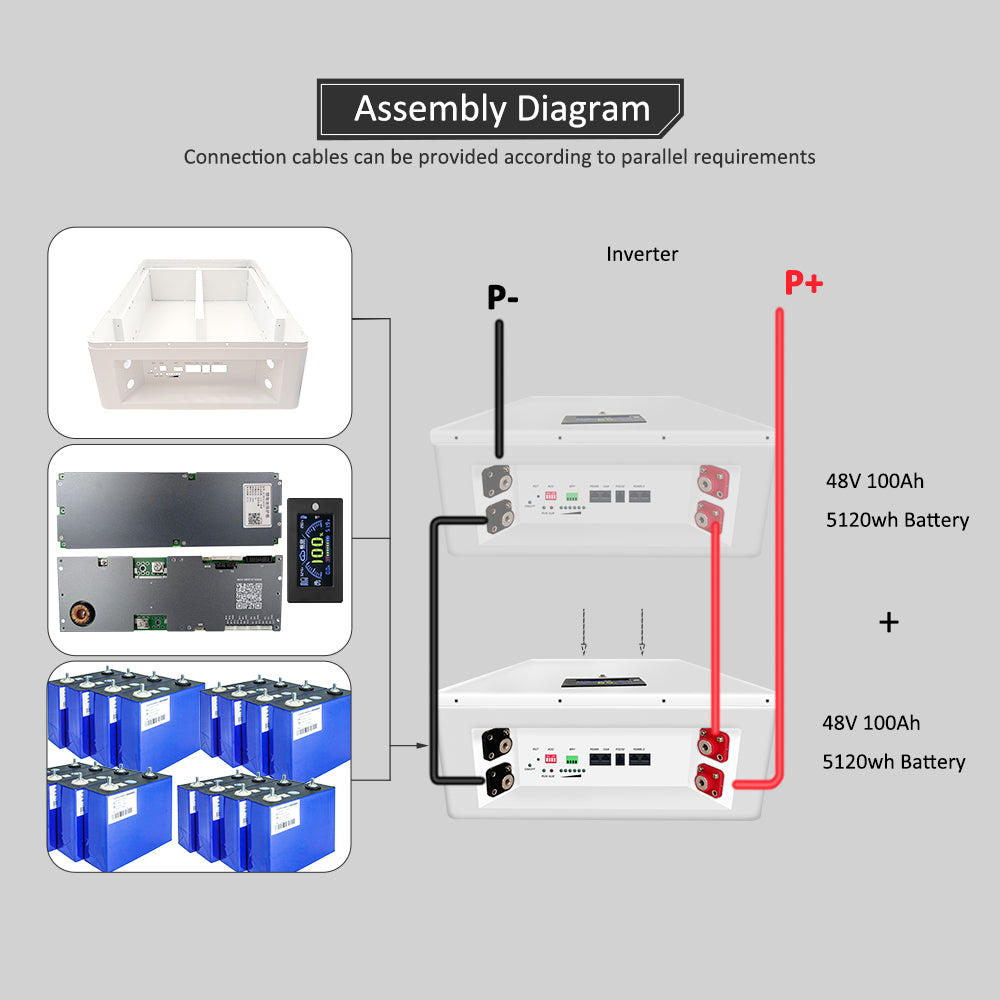

Stackable Type:up to 10*48V batteries

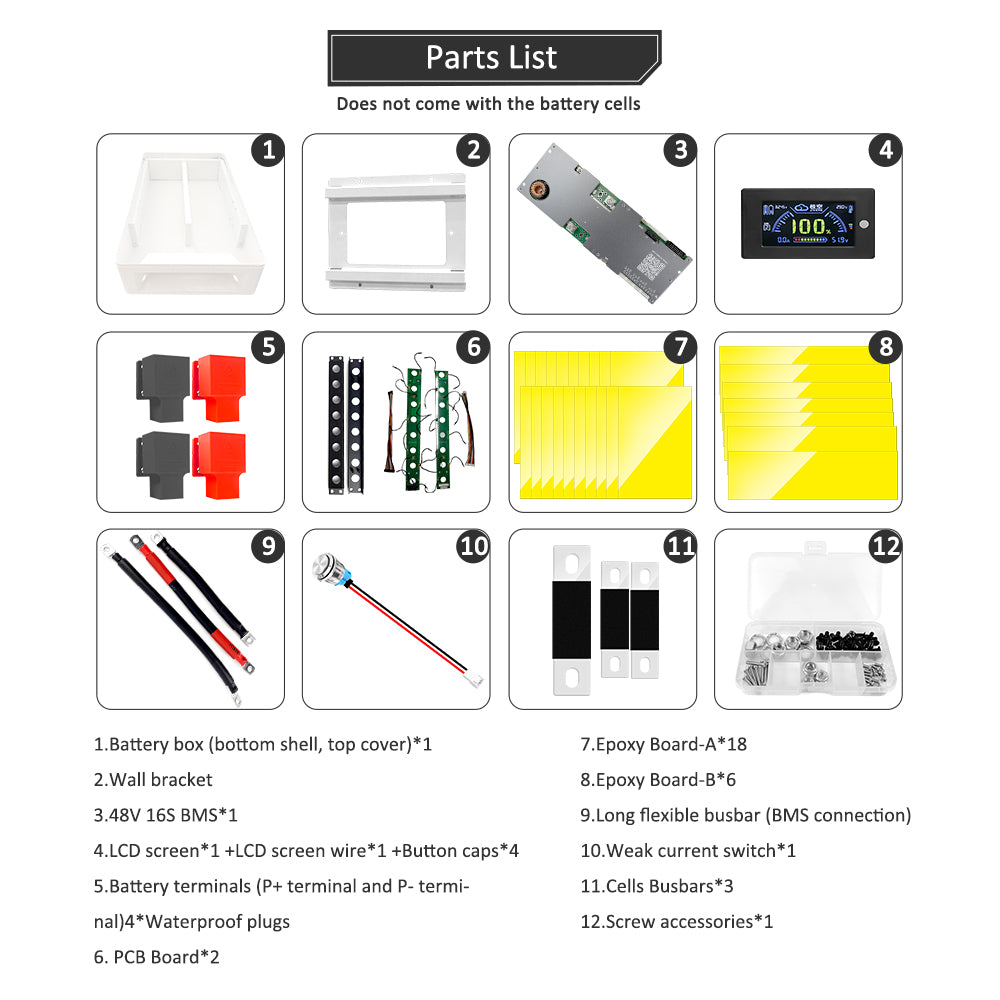

Parts List(does not come with the battery cells)
1.Battery box (bottom shell, top cover)*1
2.Wall Bracket
3.48V 16S 100A JK BMS*1
4.LCD screen*1 +LCD screen wire*1 +Button caps*4
5.Battery terminals (P+ terminal and P- termi-nal)4*Waterproof plugs
6. PCB Board*2
7.Epoxy Board-A*18
8.Epoxy Board-B*6
9.Long fexible busbar (BMS connection)
10.Weak current switch*1
11.Cells Busbars*3
12.Screw accessories*1
Other Small Accessories
The best match for batteries
Each battery pack requires a BMS to monitor the voltage of the battery pack and increase the service life of the battery pack.
Provide protection against overcharge/over discharge/over current, short circuit, over temperature, etc...
