JK BMS ESS 48V LiFePO4 Battery DIY Box JK Bms 200A V19 V15 16S Stackable Battery case 51.2V 280Ah 314Ah 15Kwh 16Kwh

JK BMS ESS 48V LiFePO4 Battery DIY Box JK Bms 200A V19 V15 16S Stackable Battery case 51.2V 280Ah 314Ah 15Kwh 16Kwh

Regular price $395.45
Regular price Sale price $395.45
Sale Sold out
SIZE

🛒Unlock Exclusive Discounts – Contact Us for a New Offer!

Email:linda@szhakadi.com

Jacob@szhakadi.com

Whatsapp:+86 13202568382

We will offer you a better price!

Contact me and we will give you better price offers and discounts

Looking forward to hearing from you

🔋Battery Warranty

LiFePO4 Battery 5 years

Sodium ion Battery 5 years

LTO Battery 10 years

NMC Battery 5 years

LiFePO4 Battery Pack 5 years

The warranty period is from the date you receive.
We only replace new cell for free due to the failure of manufacturing.
Before the shipment, we will detect the cell voltage/resistance/appearance and other issues. we can only ensure that single cell is good before the shipment.
When arrival you can test the cells within 1 week. If you find any problems, please contact us for refund or replace. Any return behavior buyers need to be responsible for shipping fee.

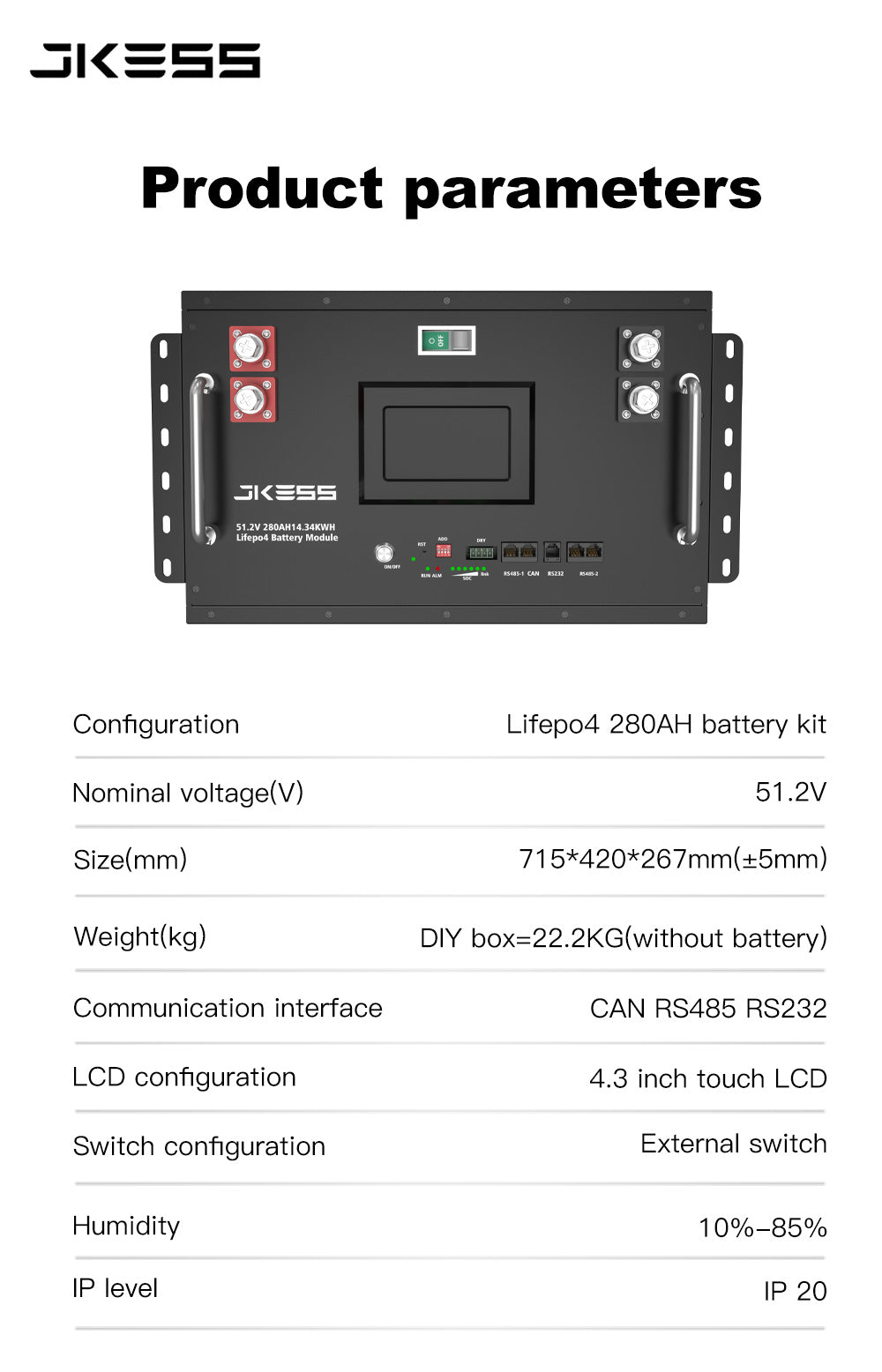

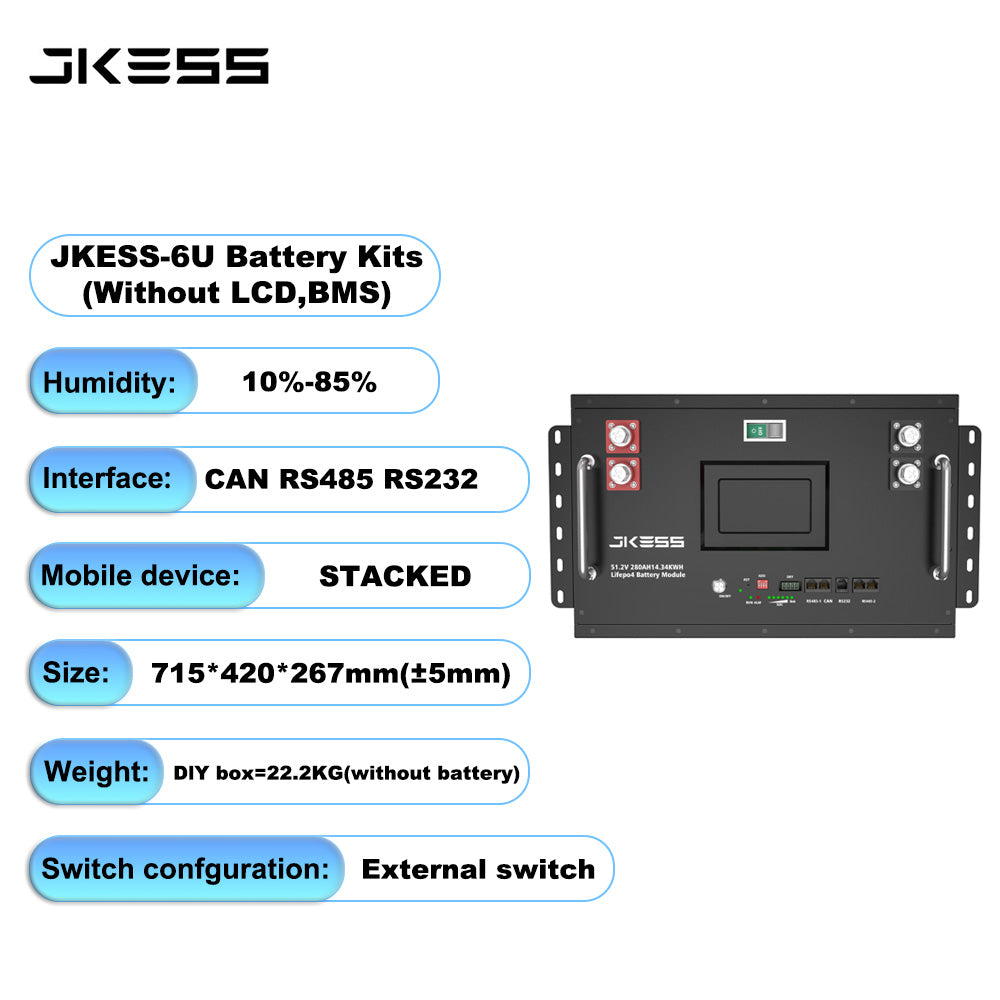

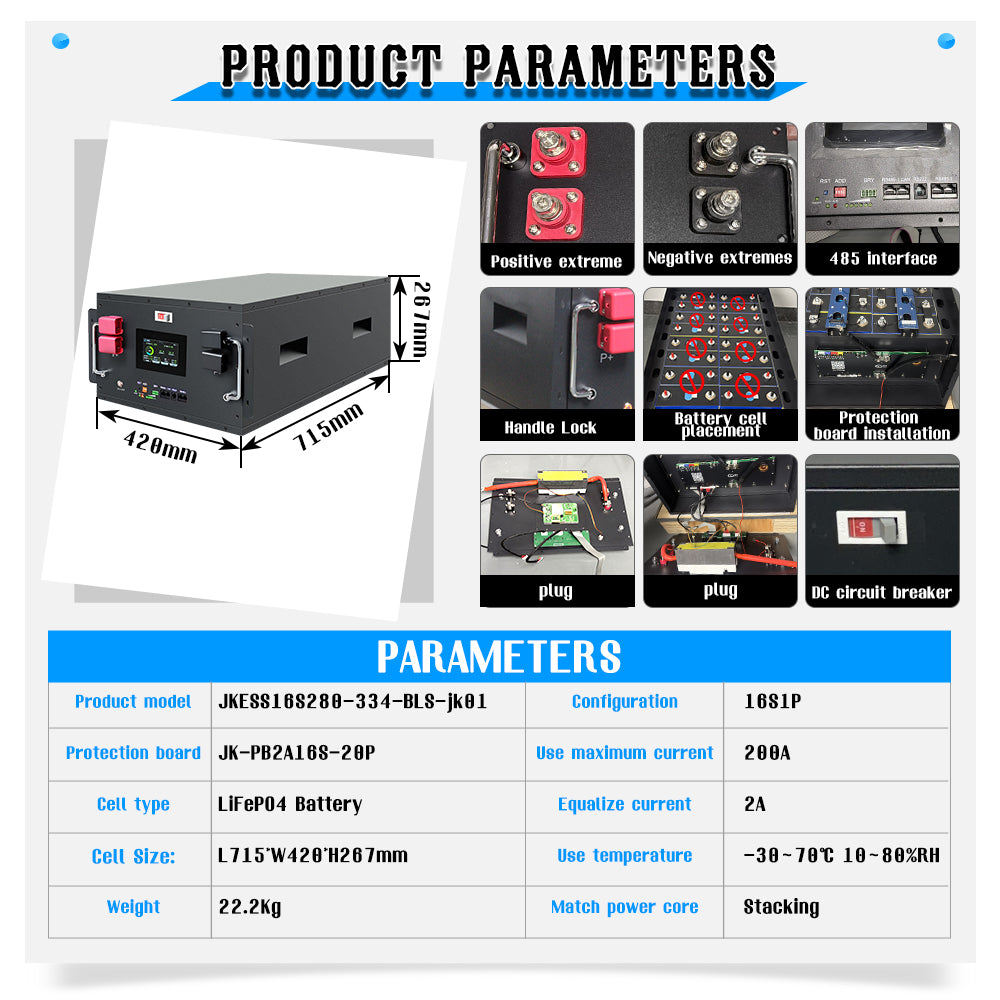

Specifications:

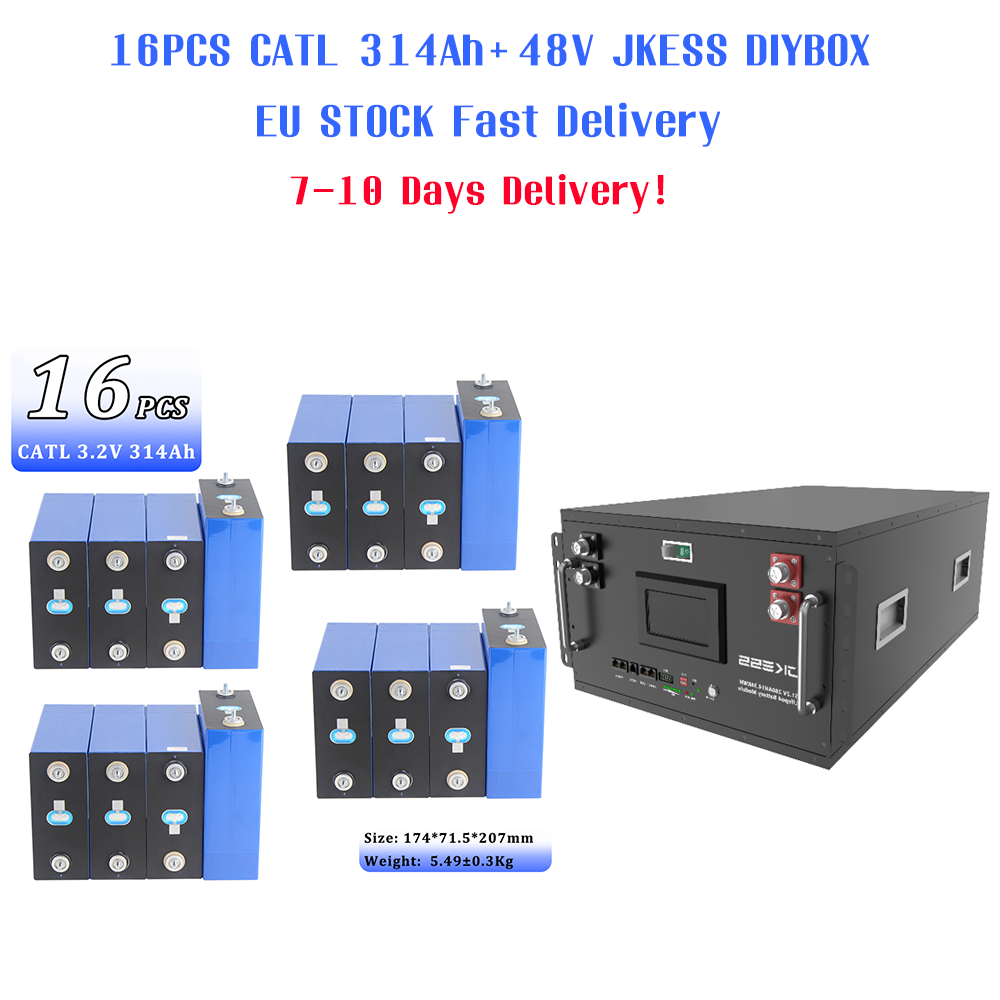

Battery Type: 48V 280-304-314Ah cell
Material: Aluminum

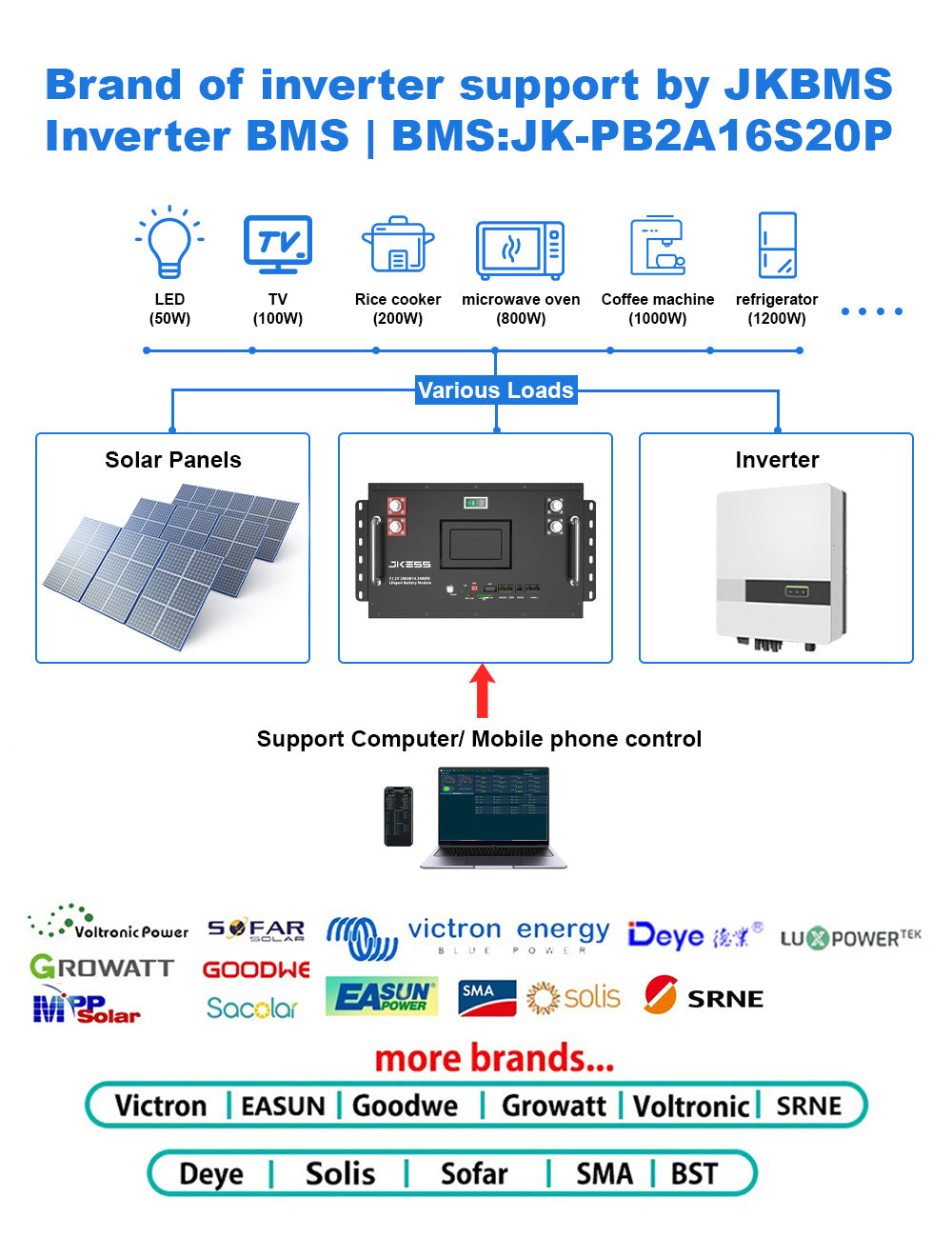

Communication: CANBUS and RS485 (both accepted)

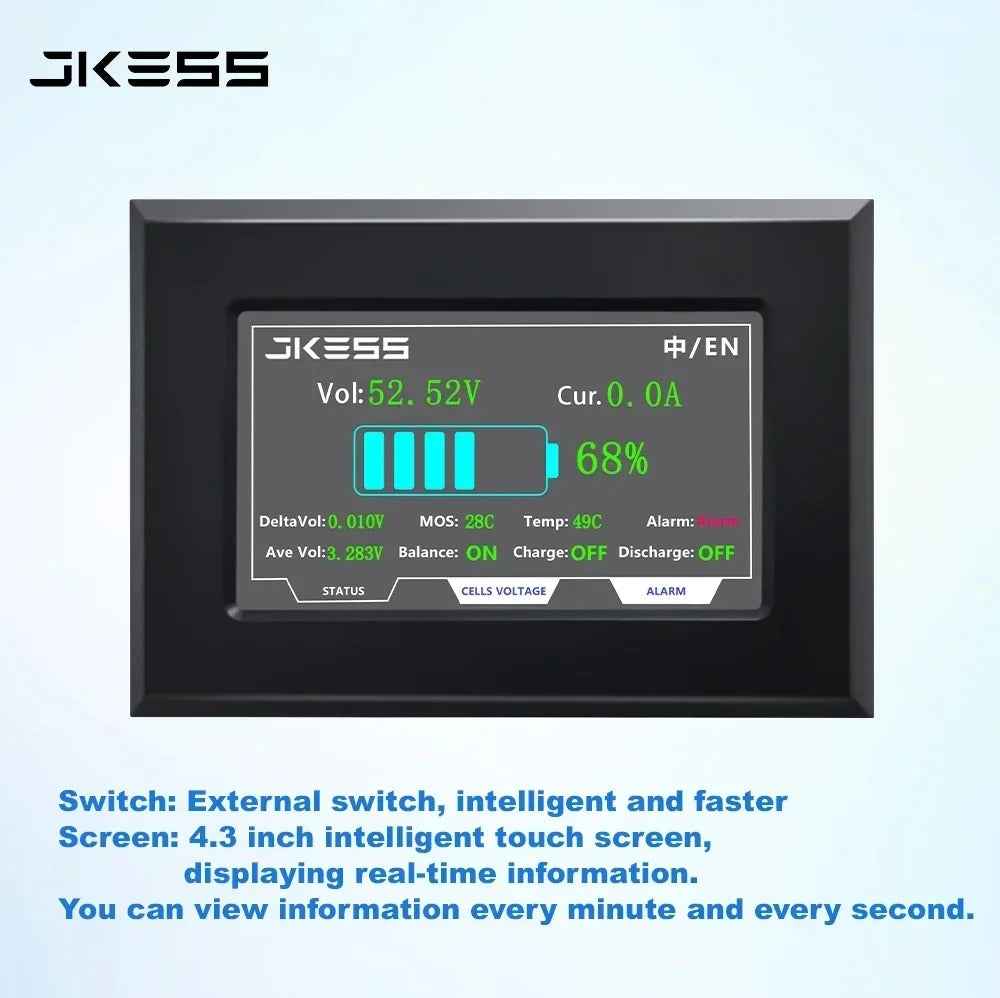

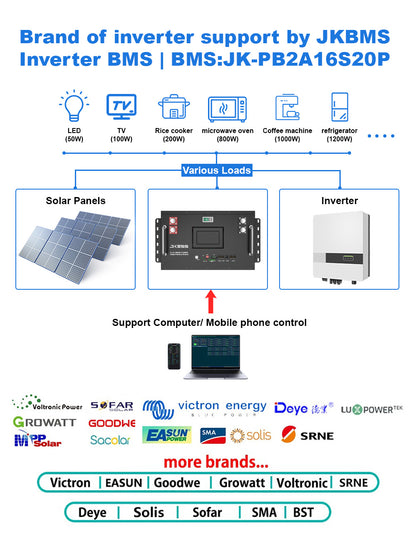

BMS:  JK-PB2A16S20P(8-16S 200A-2A have 4.3 LCD)
Nominal Voltage: 51.2V
Current: 200A
Warranty: 5 years
Type: Stackable
OEM/ODM: Available for customization
Weight: 28kg

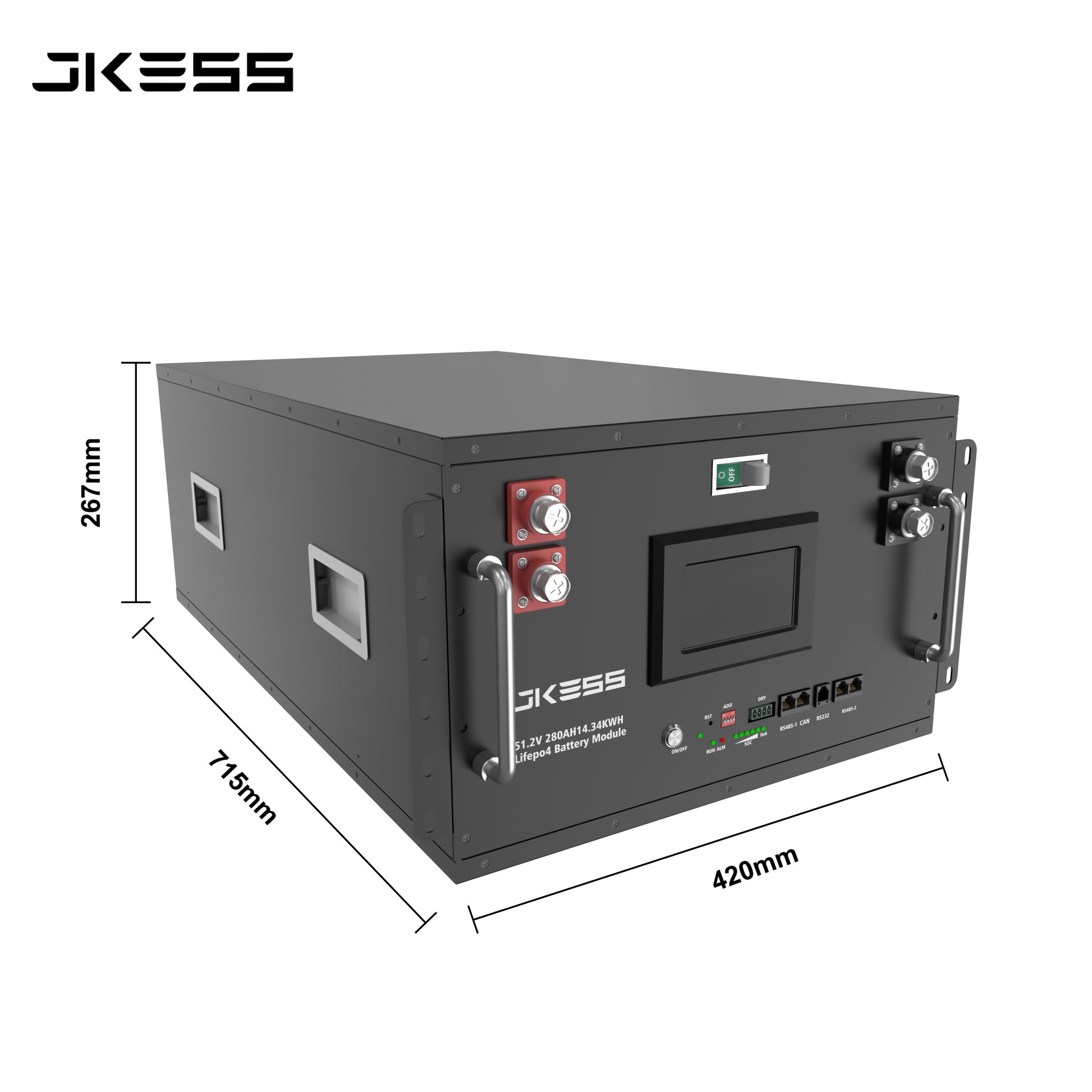

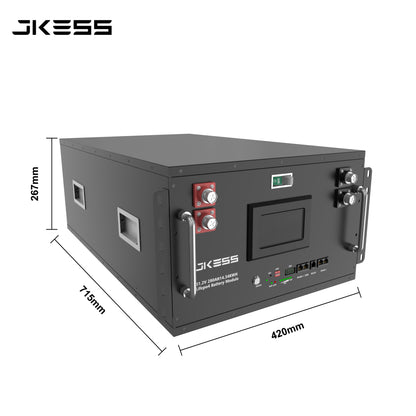

Dimensions: 420*715*276mm

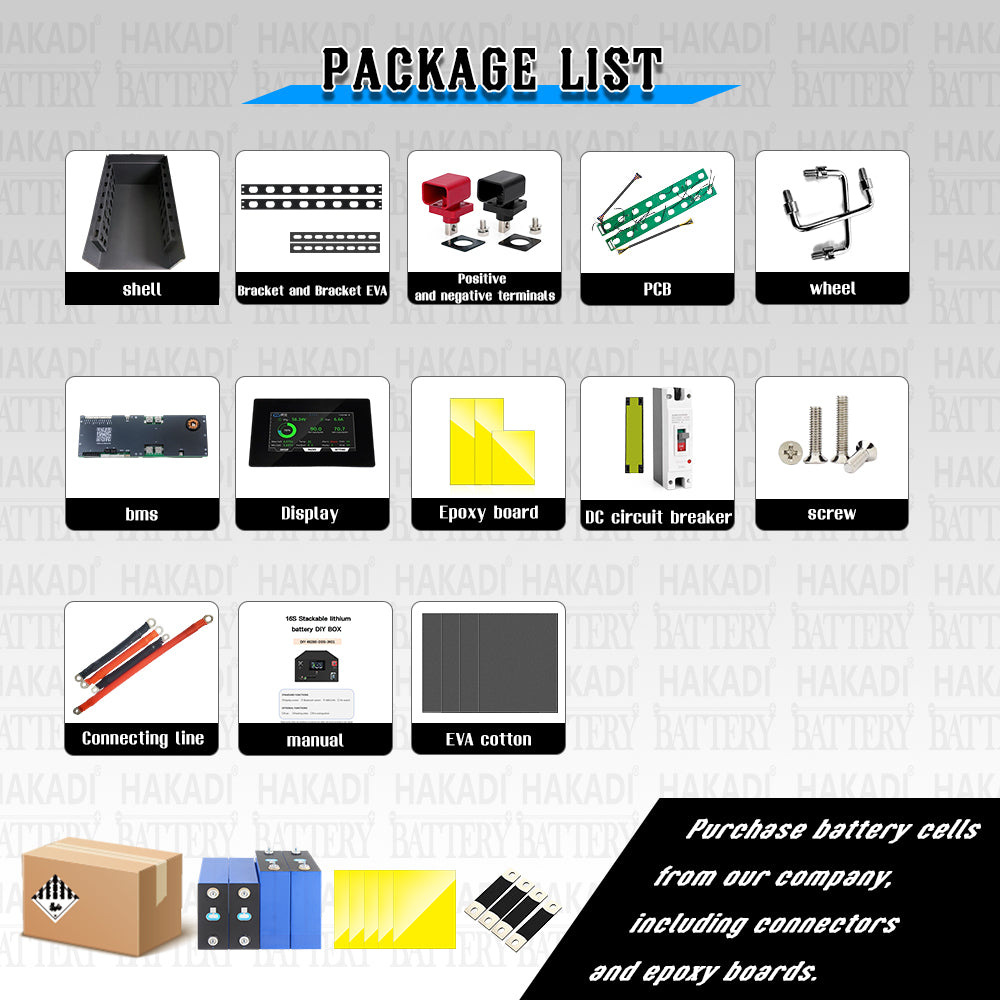

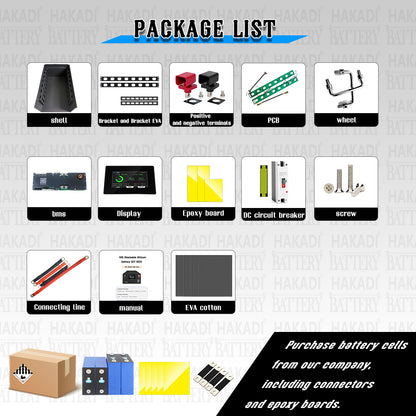

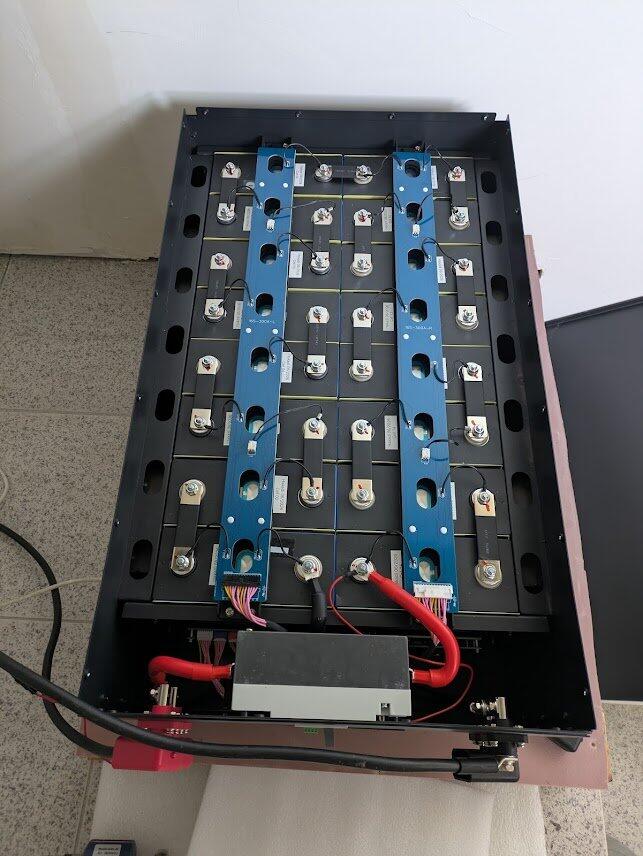

Parts List (excluding battery cells):

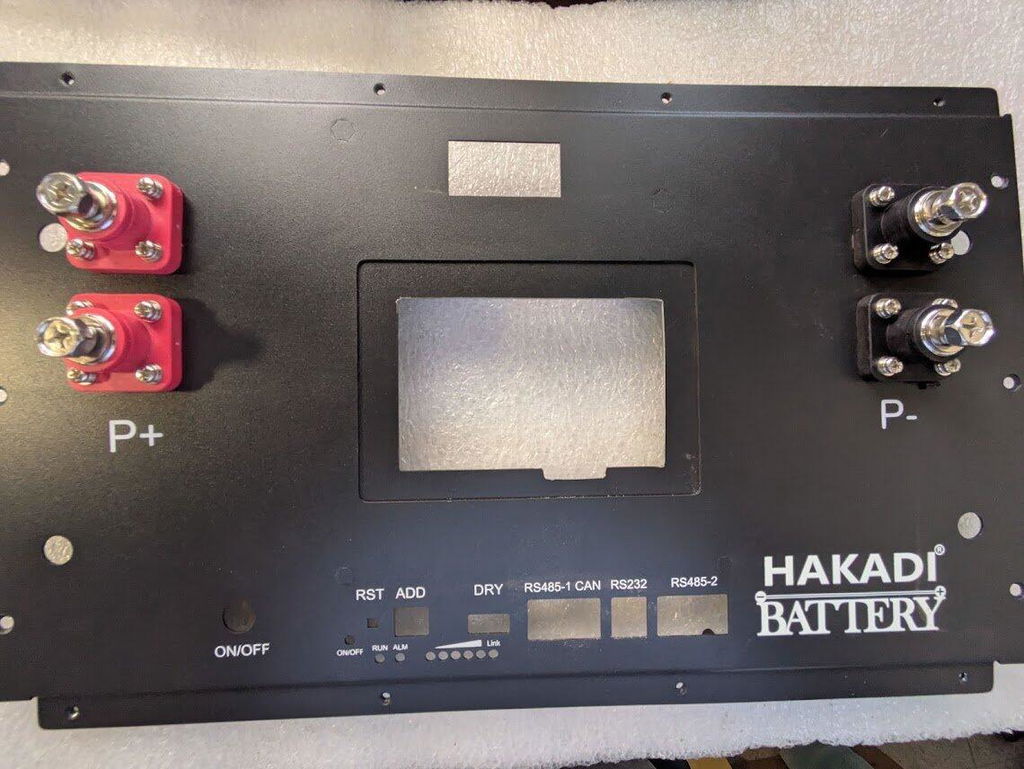

1 battery casing (bottom shell, front bracket, 2 top brackets, front panel, top cover)
1 200A CNL fuse and fuse holder
16 epoxy resin boards (for battery cells and casing)
2 PCB boards (with copper wires) for connecting BMS and battery + 2 matching EVA strips
1 weak electric switch
1 48V 16S BMS cable + 2 BMS cables

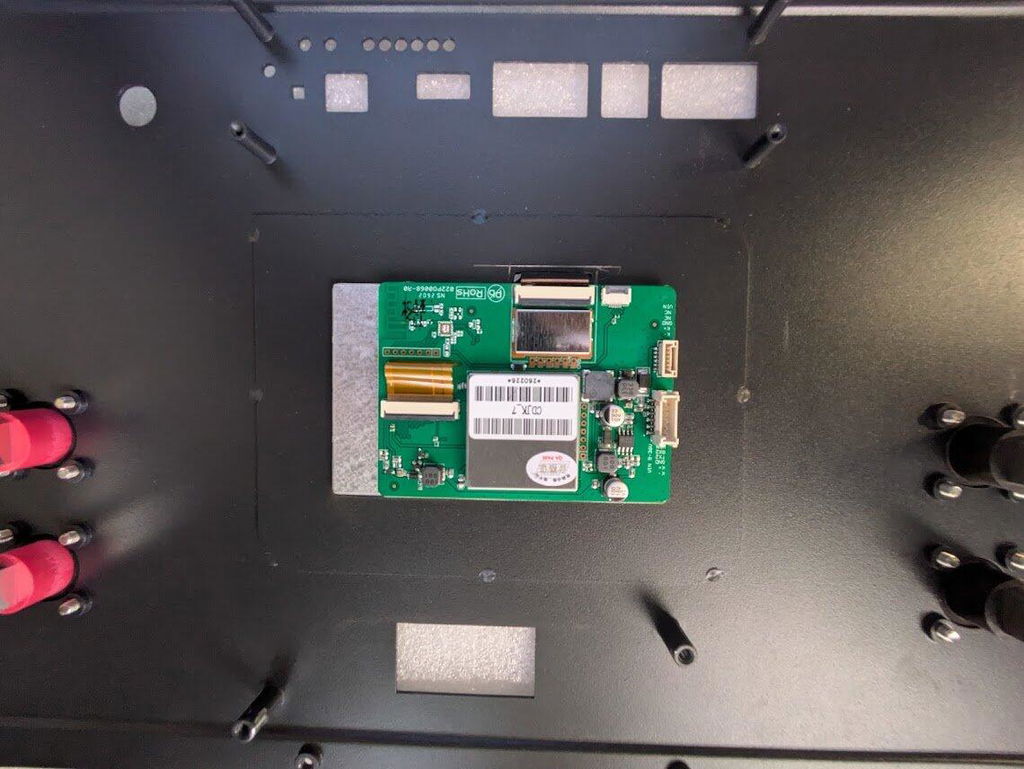

1 LCD screen + 1 LCD screen cable + 4 button caps
4 battery terminals (P+ and P- terminals)
5 long flexible bars (for BMS connection)
15 flexible bars (for battery cell connection)
4 handles
4 top and bottom snap locks
Other small accessories





View full details

The best match for batteries

Each battery pack requires a BMS to monitor the voltage of the battery pack and increase the service life of the battery pack.
Provide protection against overcharge/over discharge/over current, short circuit, over temperature, etc...
