Seplos BMS 100A 150A 200A 8S 16S 24V 48V CAN/RS485 Lifepo4 Sodium-ion Battery Protection Board
Seplos BMS 100A 150A 200A 8S 16S 24V 48V CAN/RS485 Lifepo4 Sodium-ion Battery Protection Board
Couldn't load pickup availability
🛒EU, USA, Ukraine, Free Shipping Fee and VAT Door to Door Shipping!
🛒EU, USA, Ukraine, Free Shipping Fee and VAT Door to Door Shipping!
We will offer you a better price!
please feel free to contact us via email or the Whatsapp number and Email at the bottom of the page, we will help you and look forward to doing business with you!
Email:linda@szhakadi.com
Whatsapp:+86 13202568382
🔋Battery Warranty
🔋Battery Warranty
LiFePO4 Battery 5 years
Sodium ion Battery 5 years
LTO Battery 10 years
NMC Battery 5 years
LiFePO4 Battery Pack 5 years
The warranty period is from the date you receive.
We only replace new cell for free due to the failure of manufacturing.
Before the shipment, we will detect the cell voltage/resistance/appearance and other issues. we can only ensure that single cell is good before the shipment.
When arrival you can test the cells within 1 week. If you find any problems, please contact us for refund or replace. Any return behavior buyers need to be responsible for shipping fee.
Specification
Battery type and serial number:LFP(16S)
Continuously charging/discharging current:100A/150A/200A

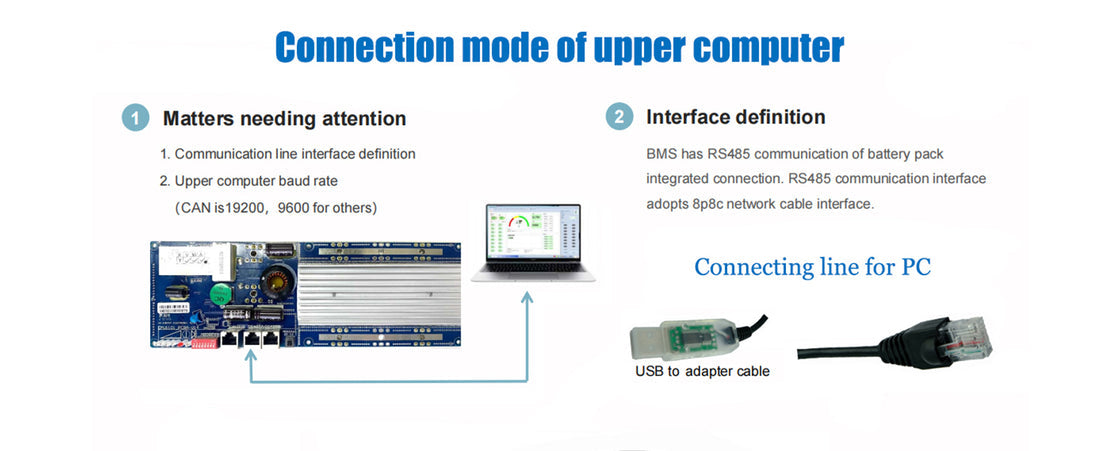

Communication protocol: accept CANBUS and RS485
Custom function: Heating function、External switch
Working temperature:-20℃-70℃
Pre-charging:0-3000ms
Current Balance: Passive balance:150mA(Max)
Power consumption: Working mode power consumption:<40mA
Sleeping mode power consumption:0 μA
Capacity protection:Nominal capacity:5-500Ah
Remaining capacity protection:5%
Short circuit protection lock: Continuously short in output circuit
Short circuit protection lock times:5 times
Short circuit protection lock release: Connected with charger
Individual cell voltage protection:
Over voltage protection:3650mV
Under voltage protection:2700mV
Over voltage protection:57.6V
Under voltage protection:41.6V
Over current protection:110/160A/210A
Over current protection time delay:30mS
Passive current limiting:10A
Heating function Start:0℃/Stop:10℃
Size:300*100*30mm/260*80*25mm

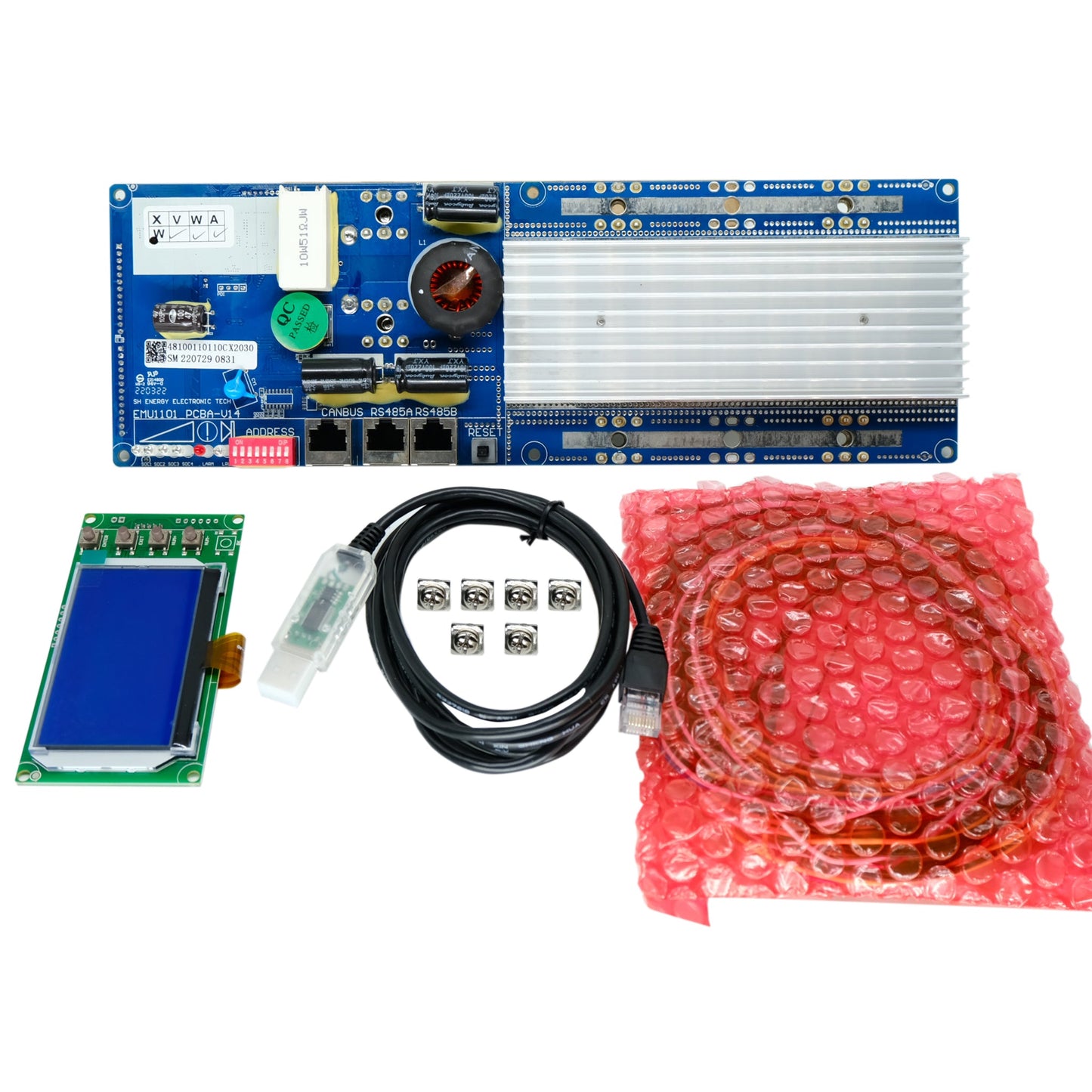

Package included:
1*BMS board

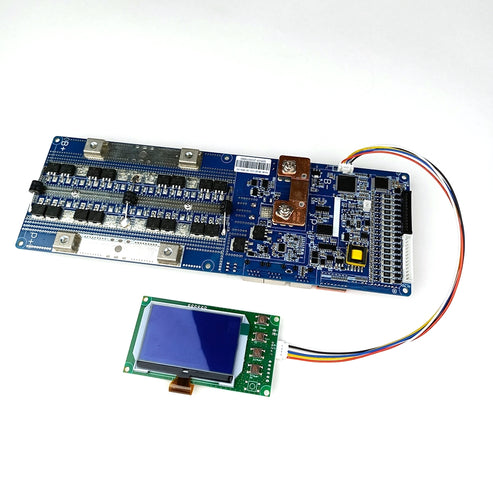

1*LCD display screen
2*Collection cable
1*Switch cable
1*Display cable
1*RS485-USB cable
serval screws and button caps.
DownLoad the BMS software:
https://drive.google.com/drive/folders/1BdpkjrWTS8rM7Ph8gk29n09wh8JujVtX
Bluetooth App(Android):
https://drive.google.com/file/d/1VkqUj50UKesQP7QZY3ZWnT9a0iyax6rt/view?usp=sharing
Bluetooth App(IOS): Search"EN BMS" in the AppStore
Smart lithium lifepo4 battery module CANBUS/RS485 48v 16S 100A/150A/200A battery protection board Cell BMS LCD monitoring system
1. This smart bms with CANBUS/RS485 module is compatible with lifepo&lithium NCM battery pack.

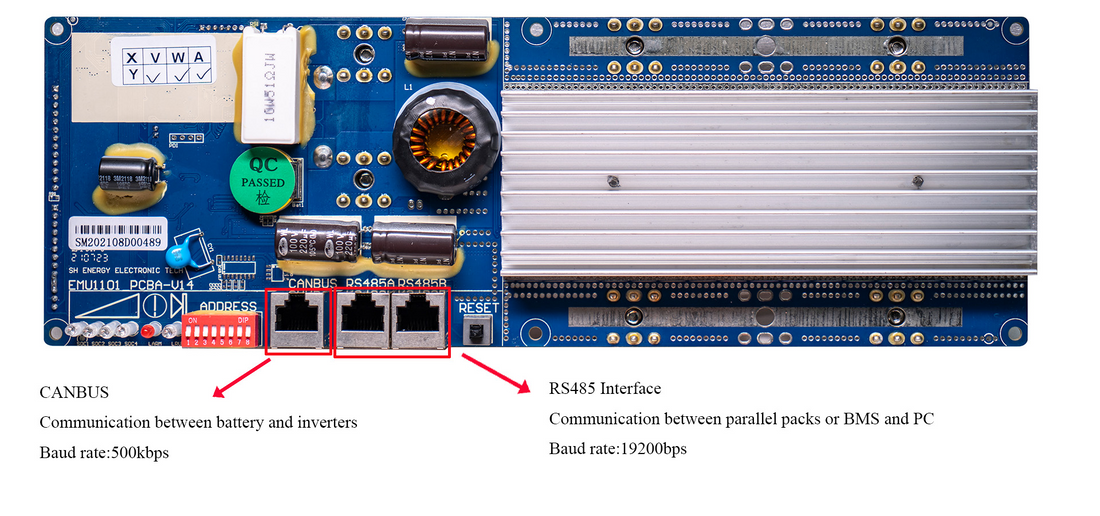

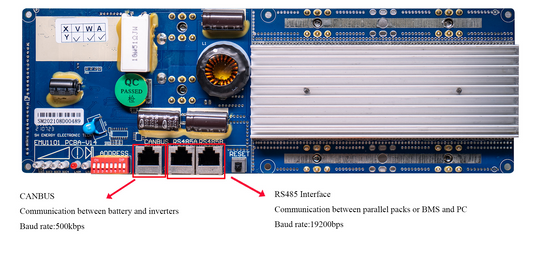

2.BMS support CANBUS communication protocol and RS485 communication protocol.
3.Our BMS can support up to max 16 units in parallel operation.
4.The main functions are: CANBUS communication,RS485 communication,passive balance,individual cell over voltage protection,Over（under)voltage protection,temperature protect,over charge (discharge)protection, over current protection, Short circuit protection.
