JK BMS ESS 48V LiFePO4 Battery DIY Box JK Bms 200A V19 V15 16S Stackable Battery case 51.2V 280Ah 314Ah 15Kwh 16Kwh
JK BMS ESS 48V LiFePO4 Battery DIY Box JK Bms 200A V19 V15 16S Stackable Battery case 51.2V 280Ah 314Ah 15Kwh 16Kwh
Couldn't load pickup availability
🛒Unlock Exclusive Discounts – Contact Us for a New Offer!
🛒Unlock Exclusive Discounts – Contact Us for a New Offer!
Email:linda@szhakadi.com
WhatsAPP:86-13500159905
We will offer you a better price!
Contact me and we will give you better price offers and discounts
Looking forward to hearing from you
🔋Battery Warranty
🔋Battery Warranty
LiFePO4 Battery 5 years
Sodium ion Battery 5 years
LTO Battery 10 years
NMC Battery 5 years
LiFePO4 Battery Pack 5 years
The warranty period is from the date you receive.
We only replace new cell for free due to the failure of manufacturing.
Before the shipment, we will detect the cell voltage/resistance/appearance and other issues. we can only ensure that single cell is good before the shipment.
When arrival you can test the cells within 1 week. If you find any problems, please contact us for refund or replace. Any return behavior buyers need to be responsible for shipping fee.
Specifications:
Battery Type: 48V 280-304-314Ah EVE 334Ah cell
Material: Aluminum
Communication: CANBUS and RS485 (both accepted)
BMS: JK-PB2A16S20P(8-16S 200A-2A have 4.3 LCD)
Nominal Voltage: 51.2V
Current: 200A
Warranty: 5 years
Type: Stackable
OEM/ODM: Available for customization
Weight: 25kg
Dimensions: 420*715*276mm
Note:
Our JK ESS 6U 48V DIY kits in our Polish warehouse in the EU are currently sold out. The new stock will arrive on June 7th and is now available for pre-order.
We sincerely apologize for any inconvenience this may cause.
EU warehouse Online Website Price With Shipping fee and Tax

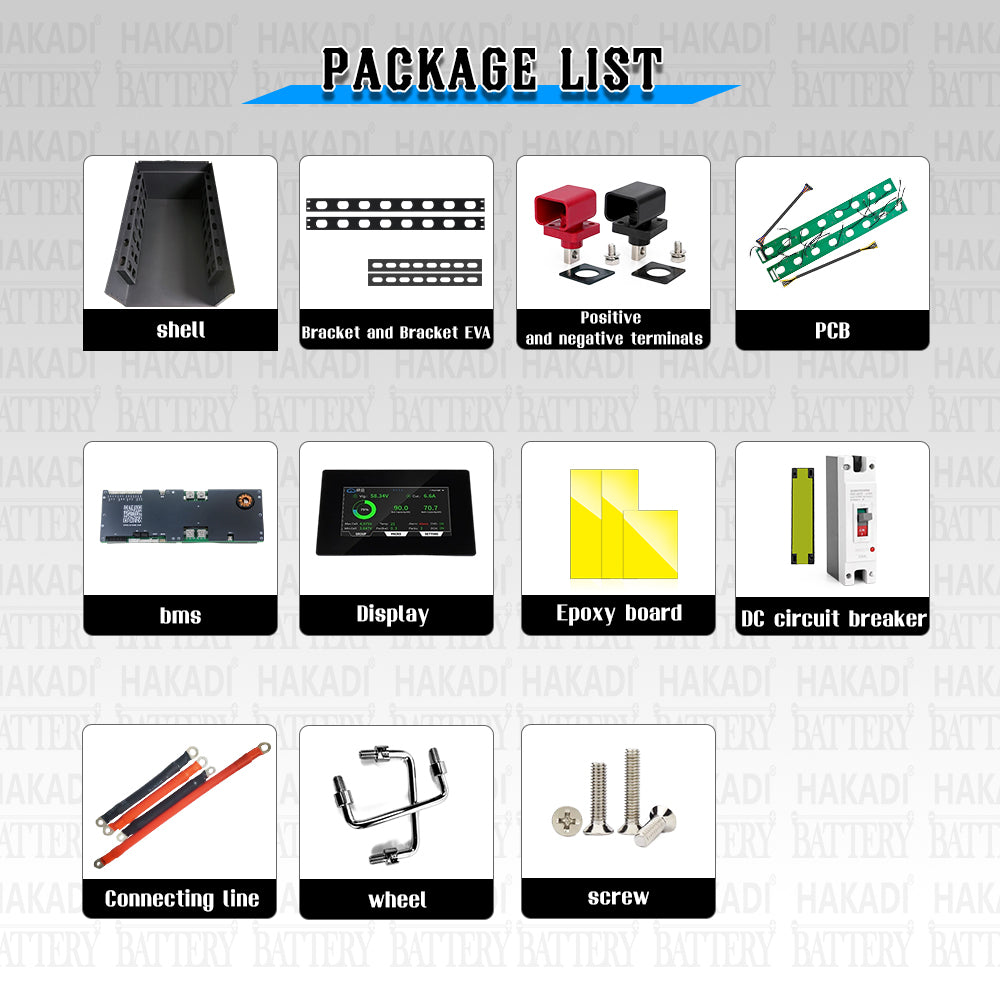

Parts List (excluding battery cells):
1 battery casing (bottom shell, front bracket, 2 top brackets, front panel, top cover)
1 200A CNL fuse and fuse holder
2 PCB boards (with copper wires) for connecting BMS and battery + 2 matching EVA strips
1 weak electric switch
1 JK-PB2A16S20P(8-16S 200A-2A have 4.3 LCD)
1 JKBMS 4,3 LCD screen + 1 LCD screen cable
4 battery terminals (P+ and P- terminals)
4 long flexible bars (for BMS connection)
4 handles
4 top and bottom snap locks
Other small accessories
Please feel free to contact our staff if you have any questions or need assistance.
Email:jacob@szhakadi.com
WhatsApp:86-135 0015 9905
The best match for batteries
Each battery pack requires a BMS to monitor the voltage of the battery pack and increase the service life of the battery pack.
Provide protection against overcharge/over discharge/over current, short circuit, over temperature, etc...
